Neville Badcock 's powered cycles

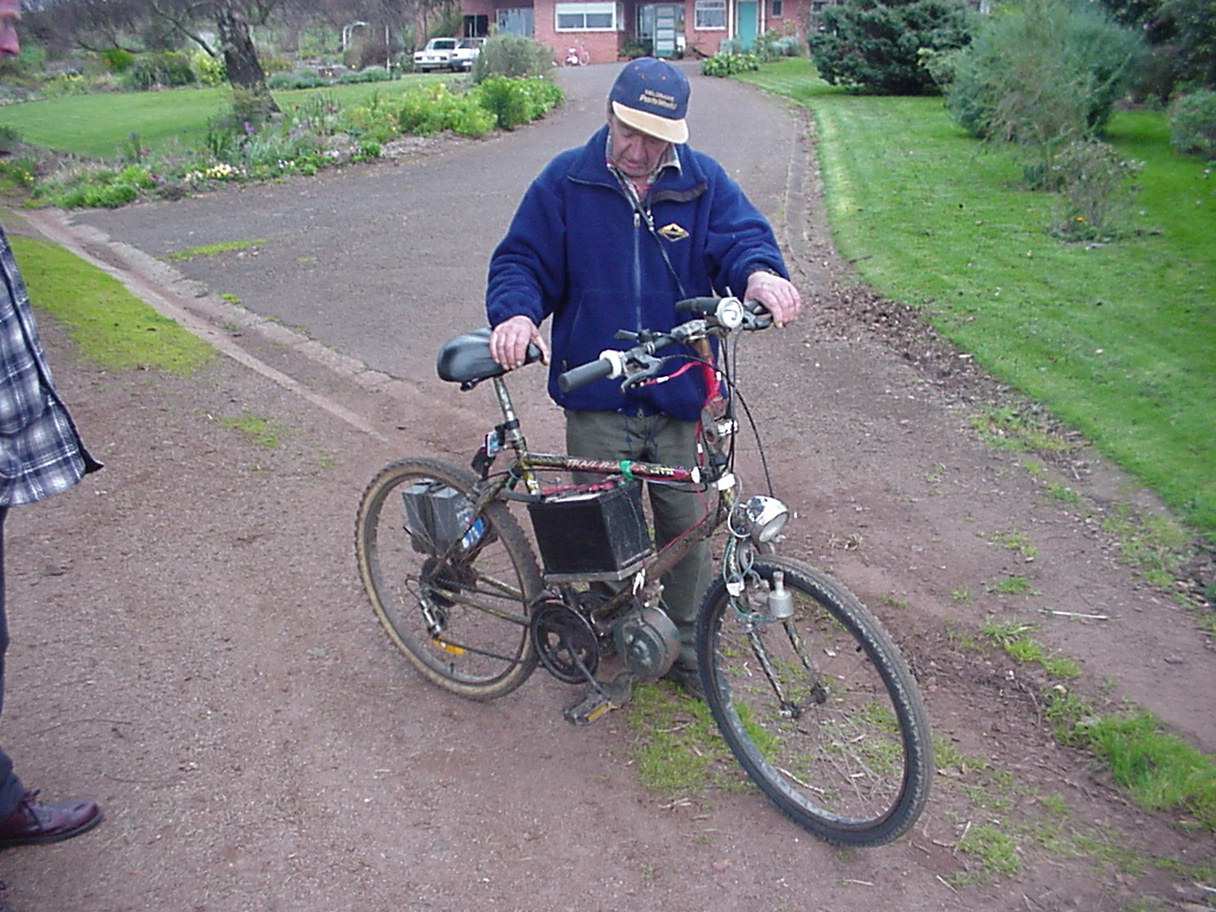

Electric bike

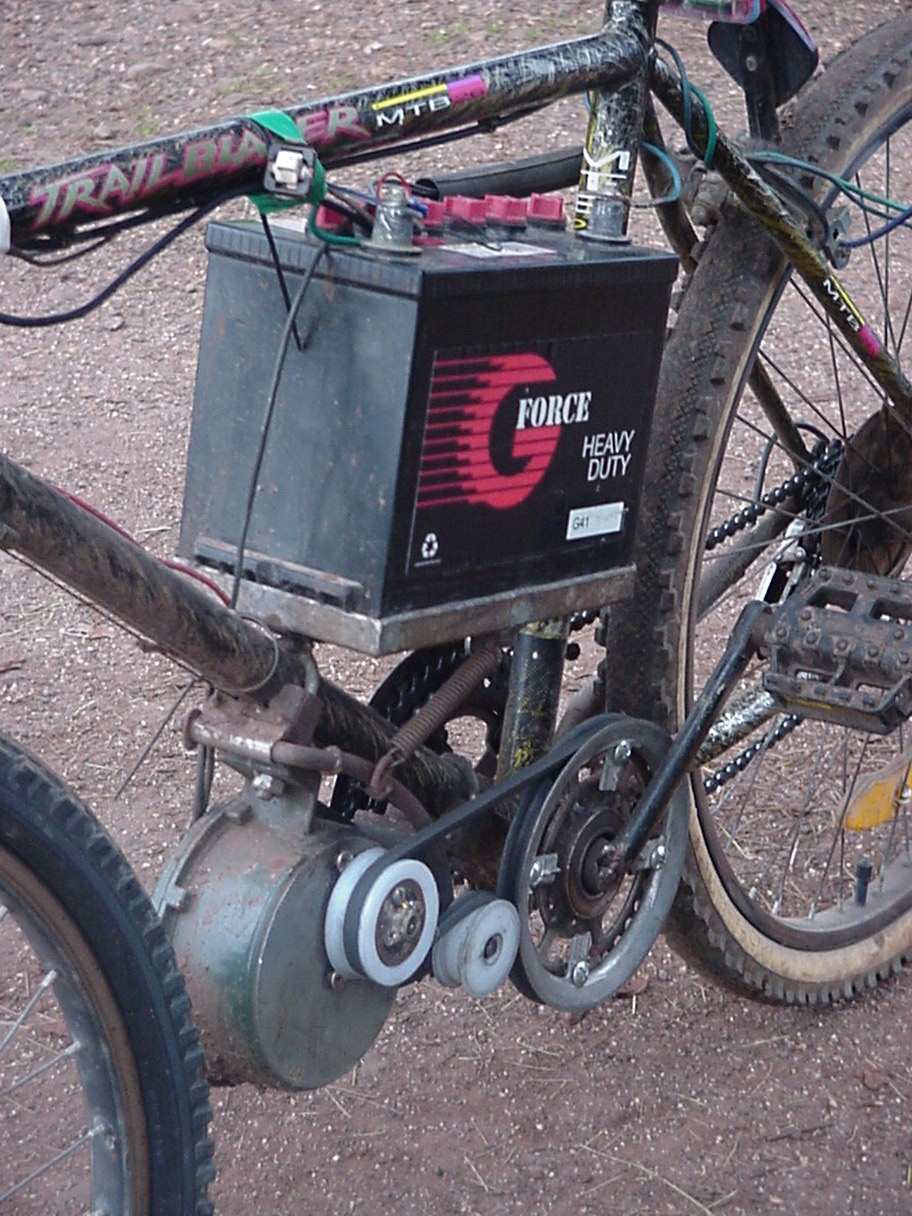

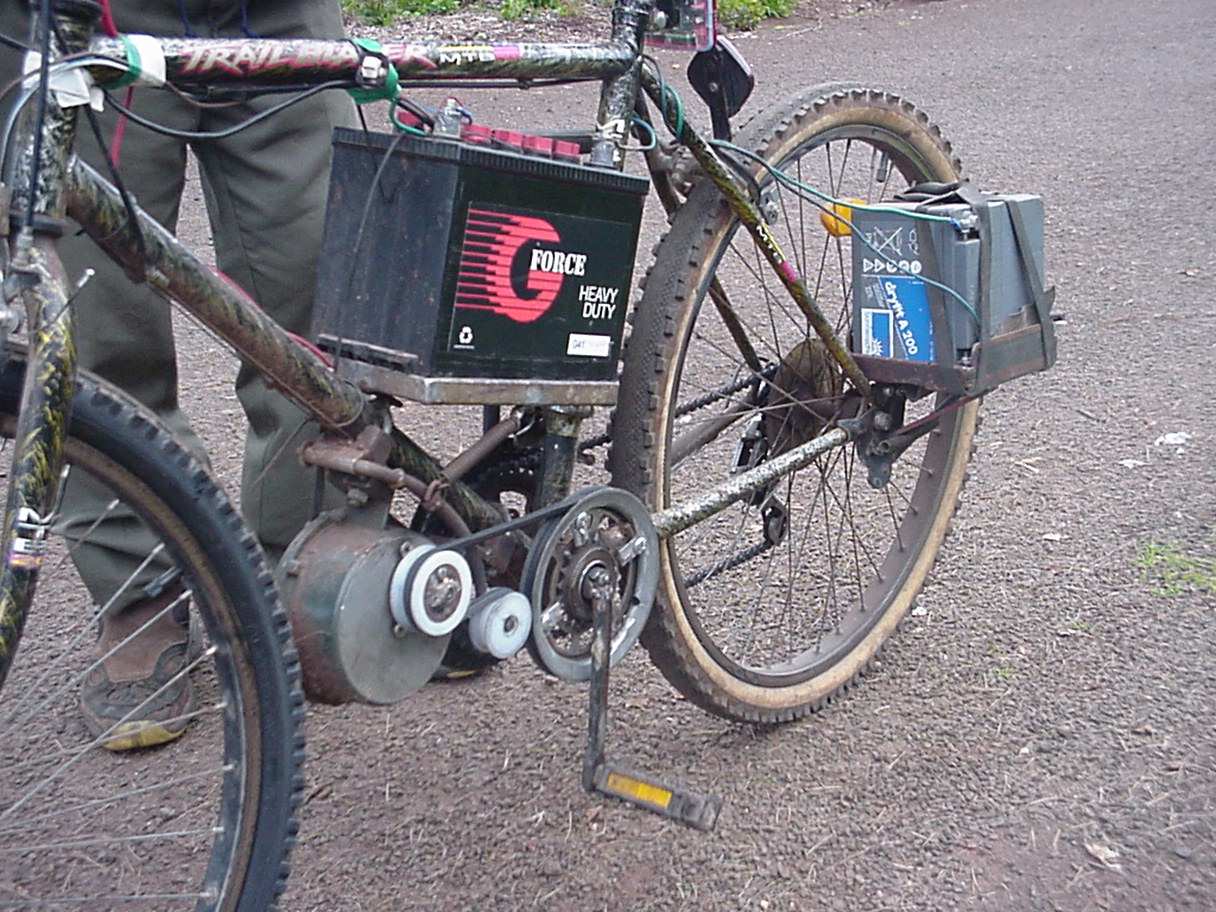

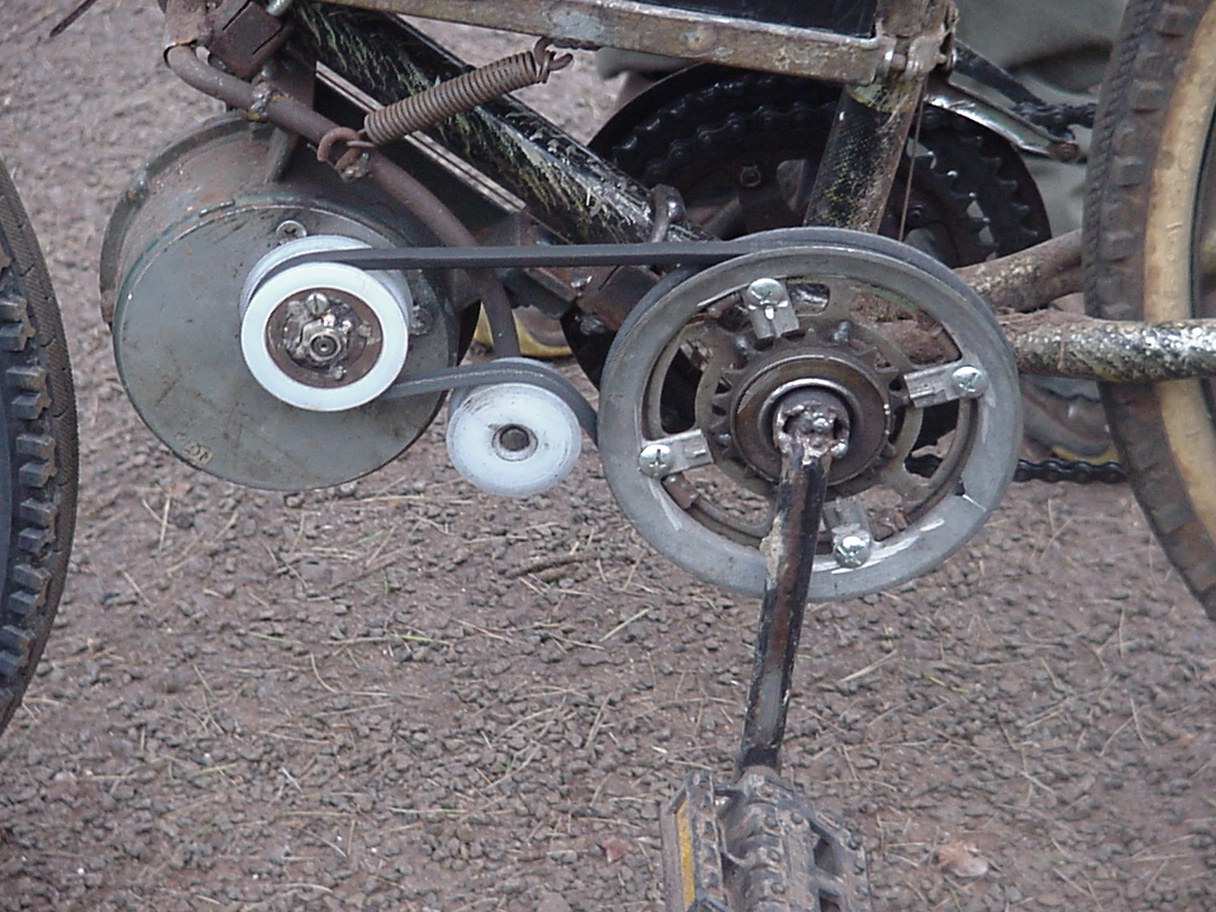

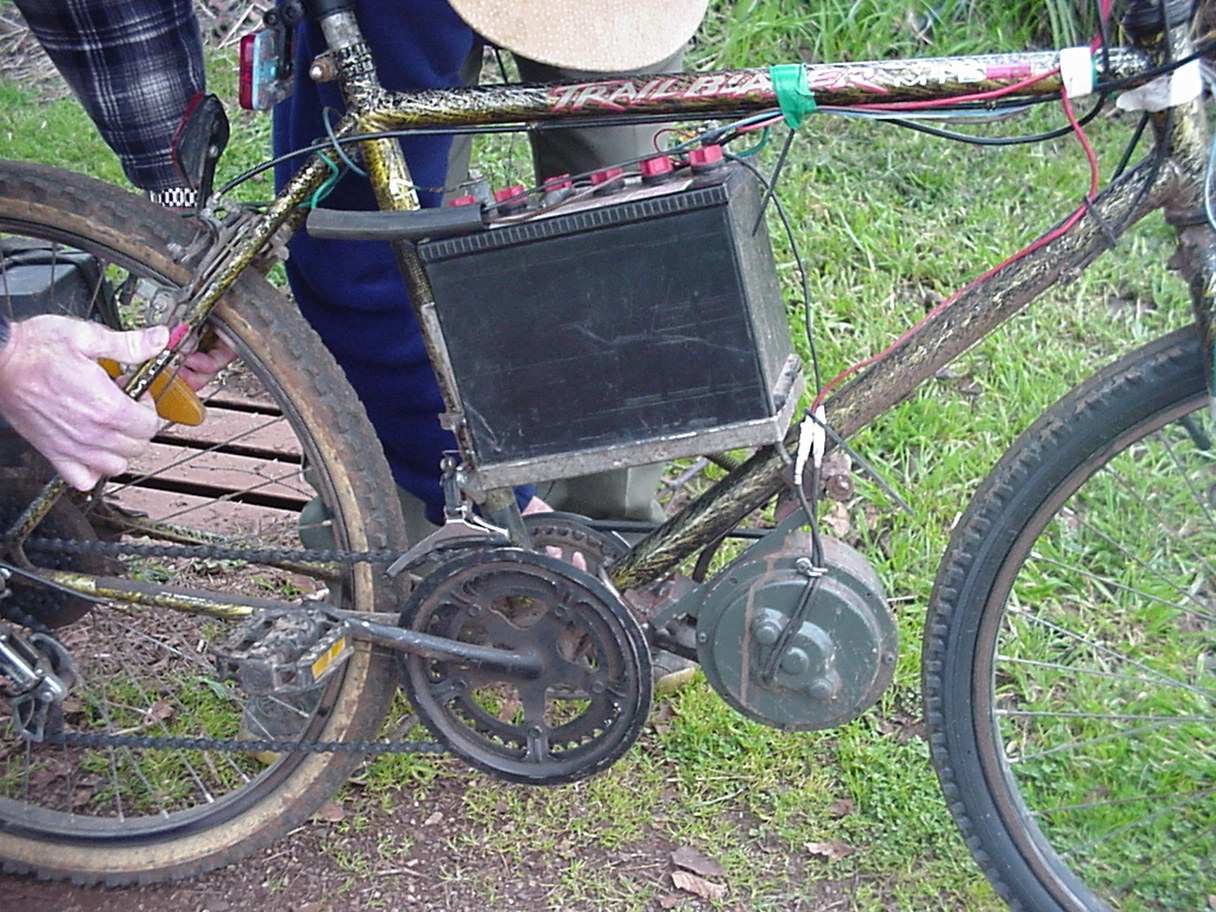

This is a homebuilt electric assisted bike using an ex wheelchair motor/gearbox As it's 24v a car battery and 1 deep cycle battery is used - not exactly a match but still functional. The motor drives the cranks through a ratchet so the rider can pedal without the electric motor driving allowing the use of all the bikes gears.

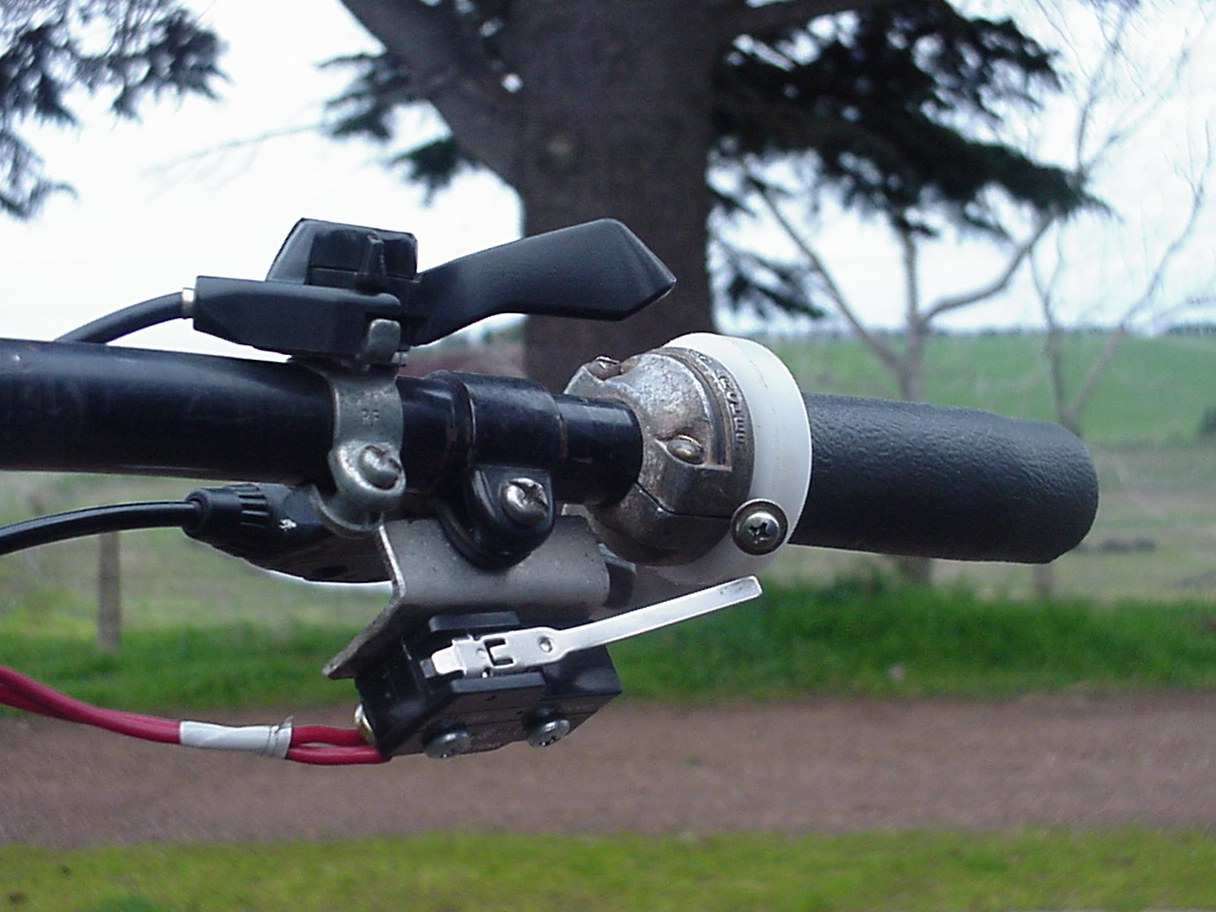

Twist-grip turns with set screw pushing the momentary micro switch on. There is slight friction in the twist grip so the rider can pull the throttle on and leave it there. (EG cruise control)




Video's of the bike in action
Video - 320x240, 4 sec, 411k
Video - 160x112, 10sec, 240k
Video - 160x112, 5sec, 120k
Video - 160x112, 13sec, 304k

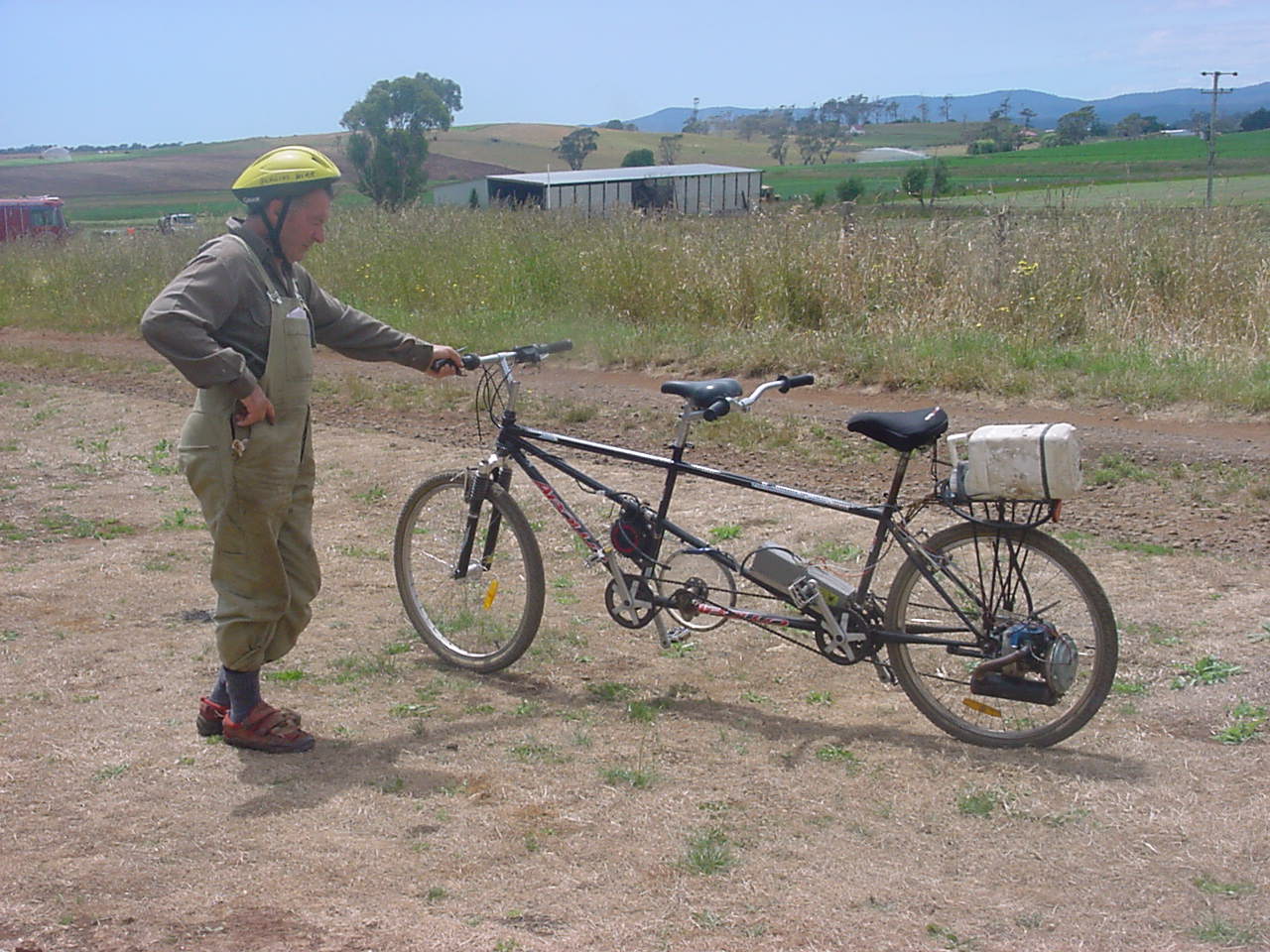

Electric tandem bike

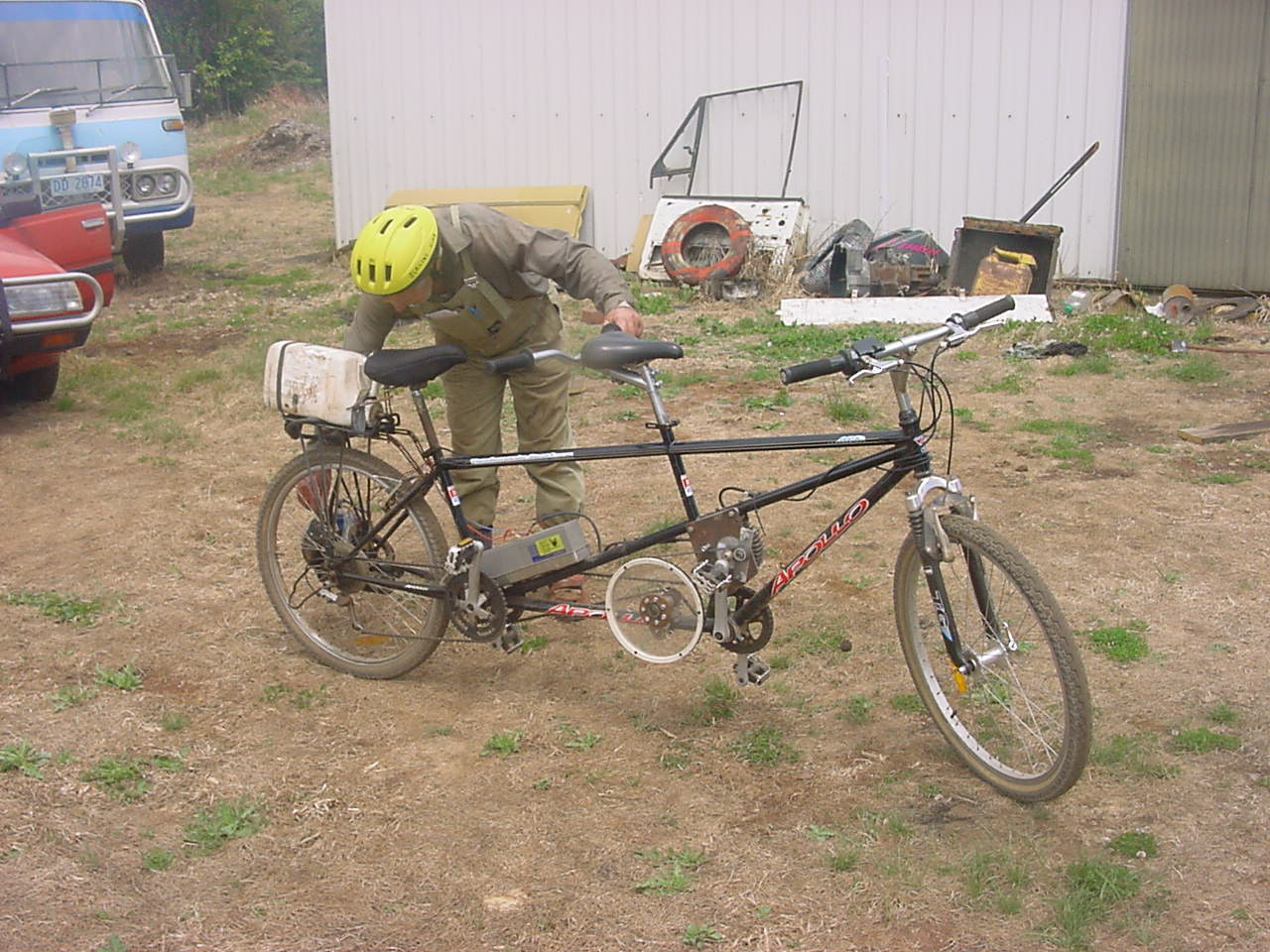

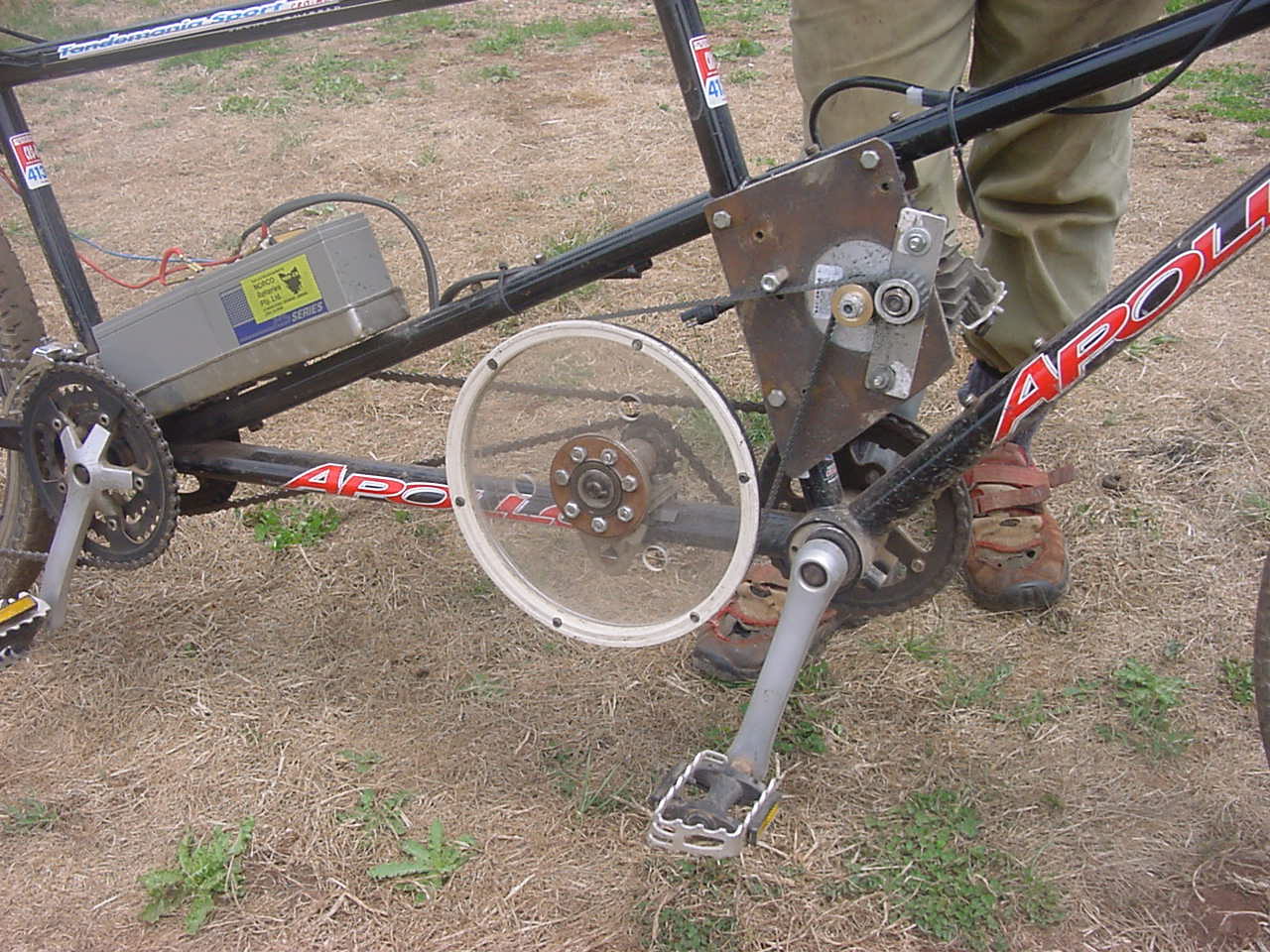

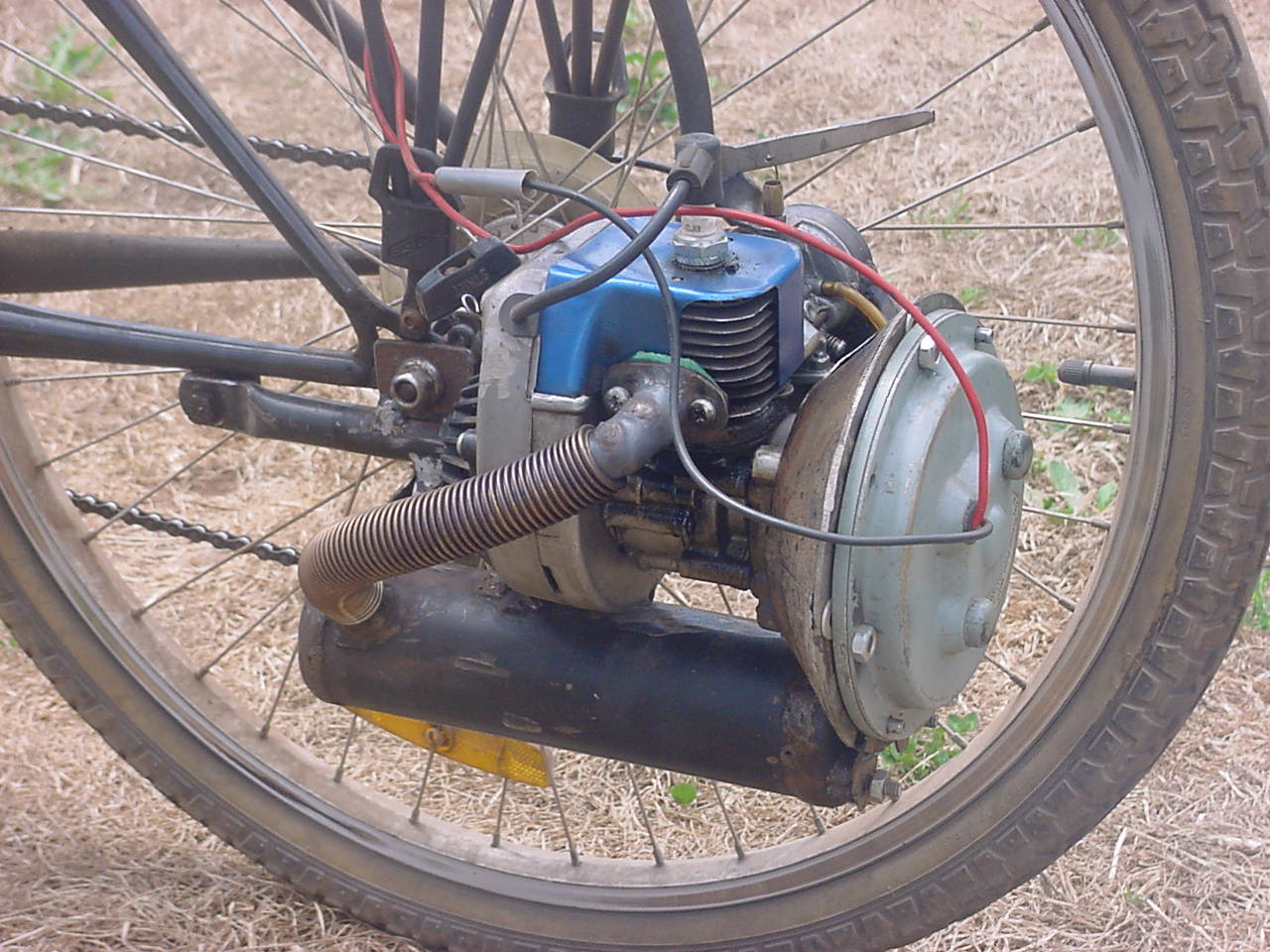

This is a homebuilt electric assisted tandem bike (which is still only part finished) using a US Pro Drive motor/speed controller. The motor drives the cranks through a ratchet so the rider can pedal without the electric motor driving allowing the use of all the bikes gears. A 2 stroke petrol weed trimmer motor in coupled to a electric motor/generator to charge the 2x7AH batteries as well as give electric start to the weed trimmer motor.

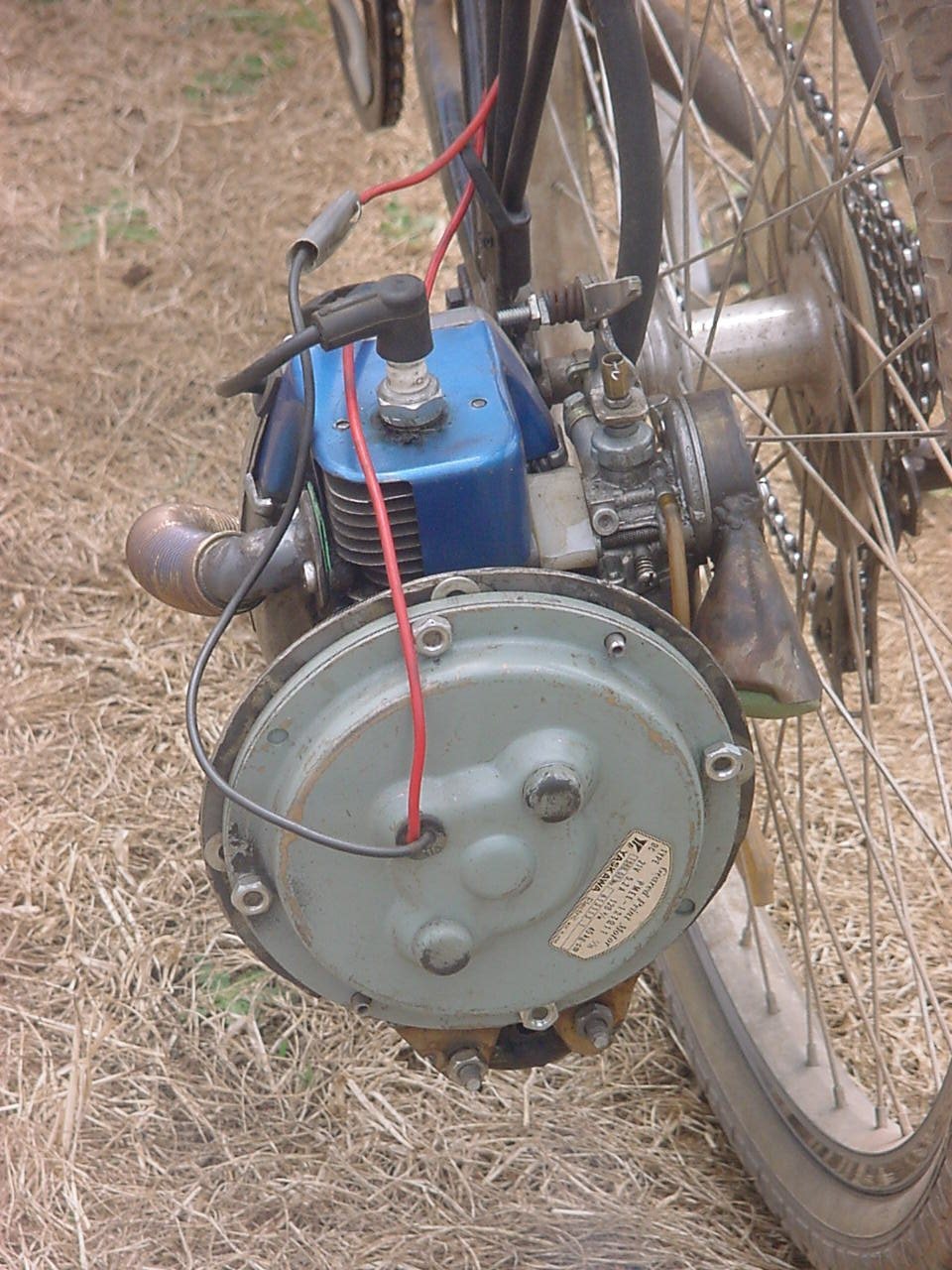

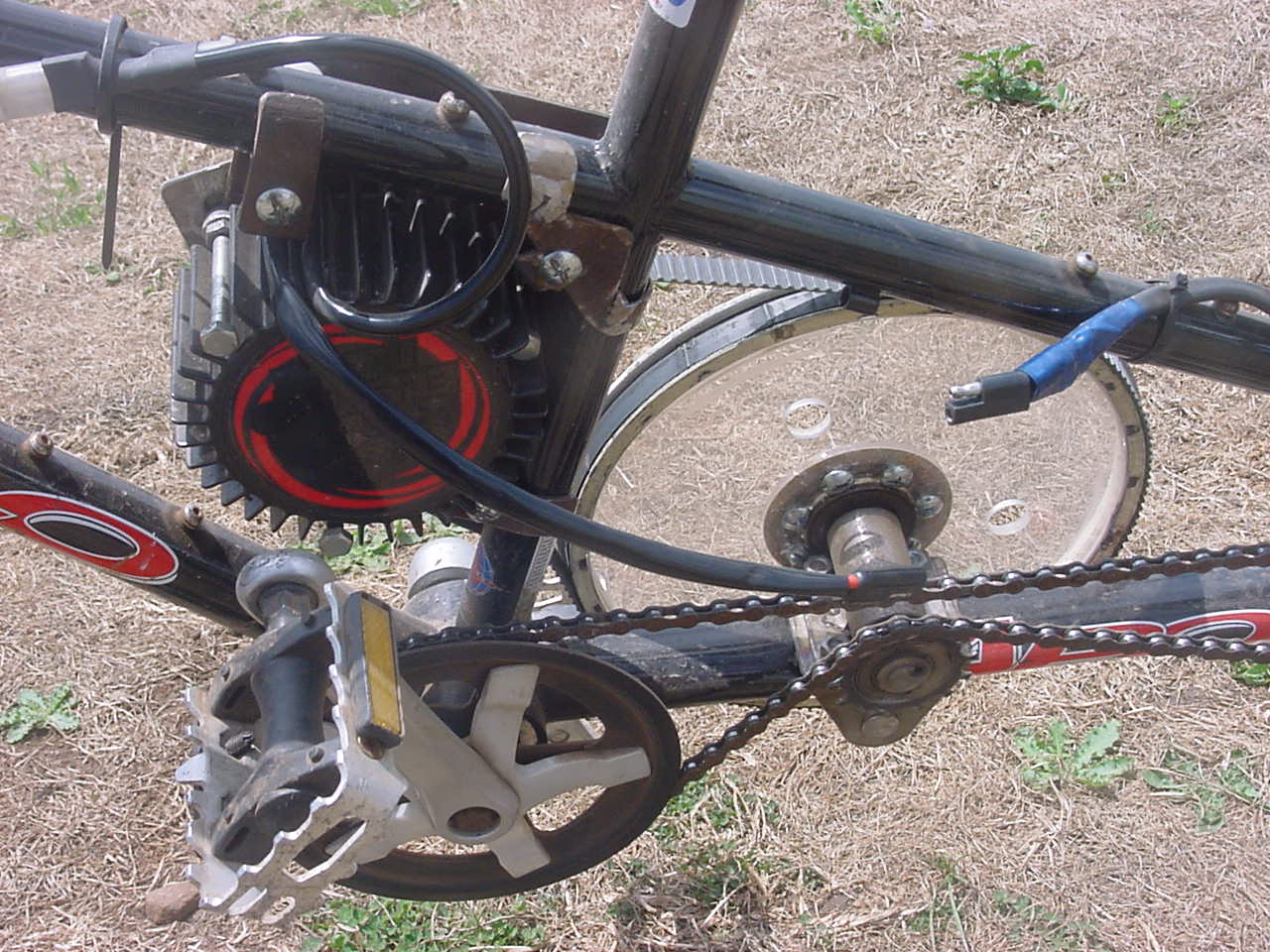

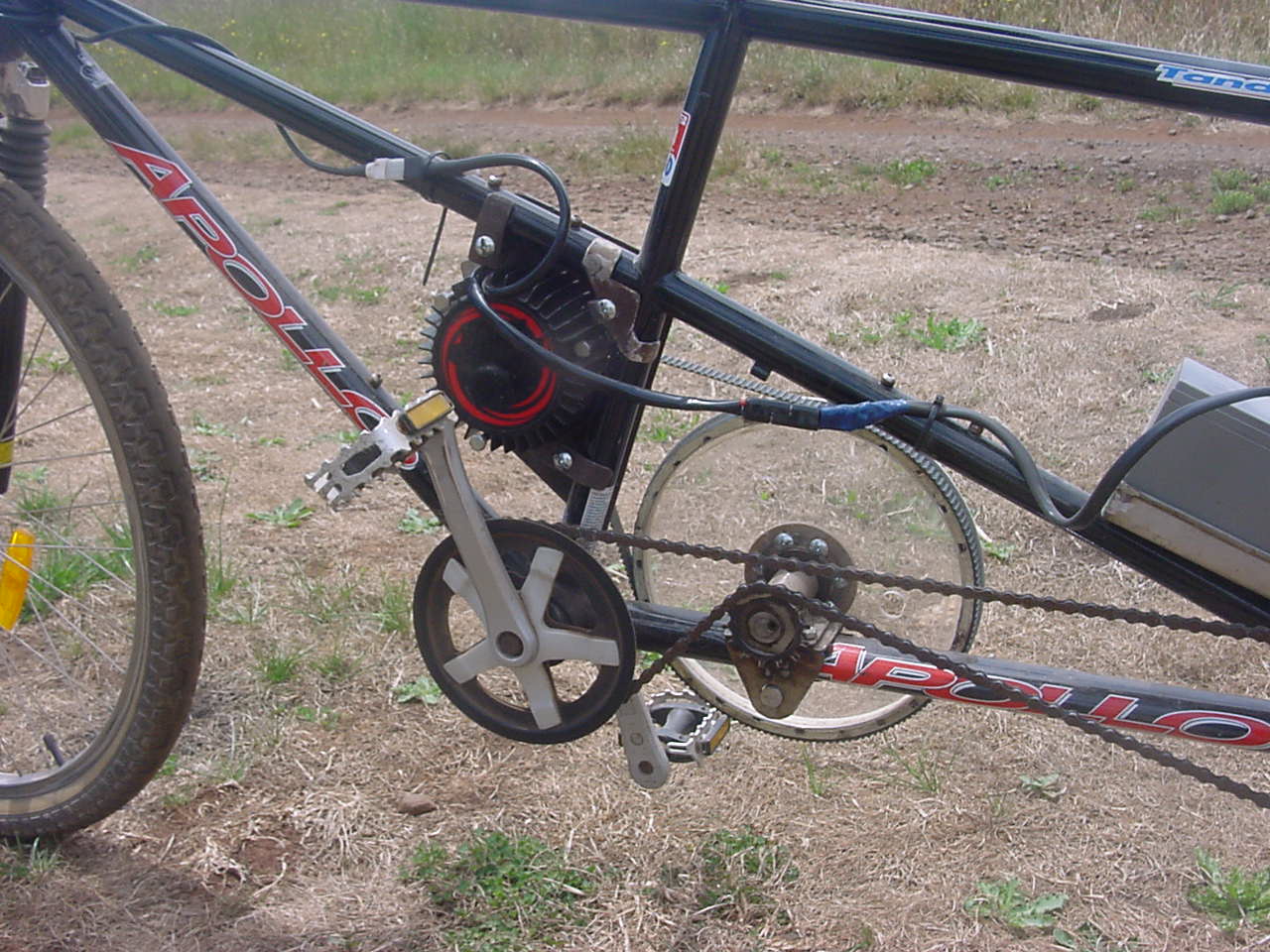

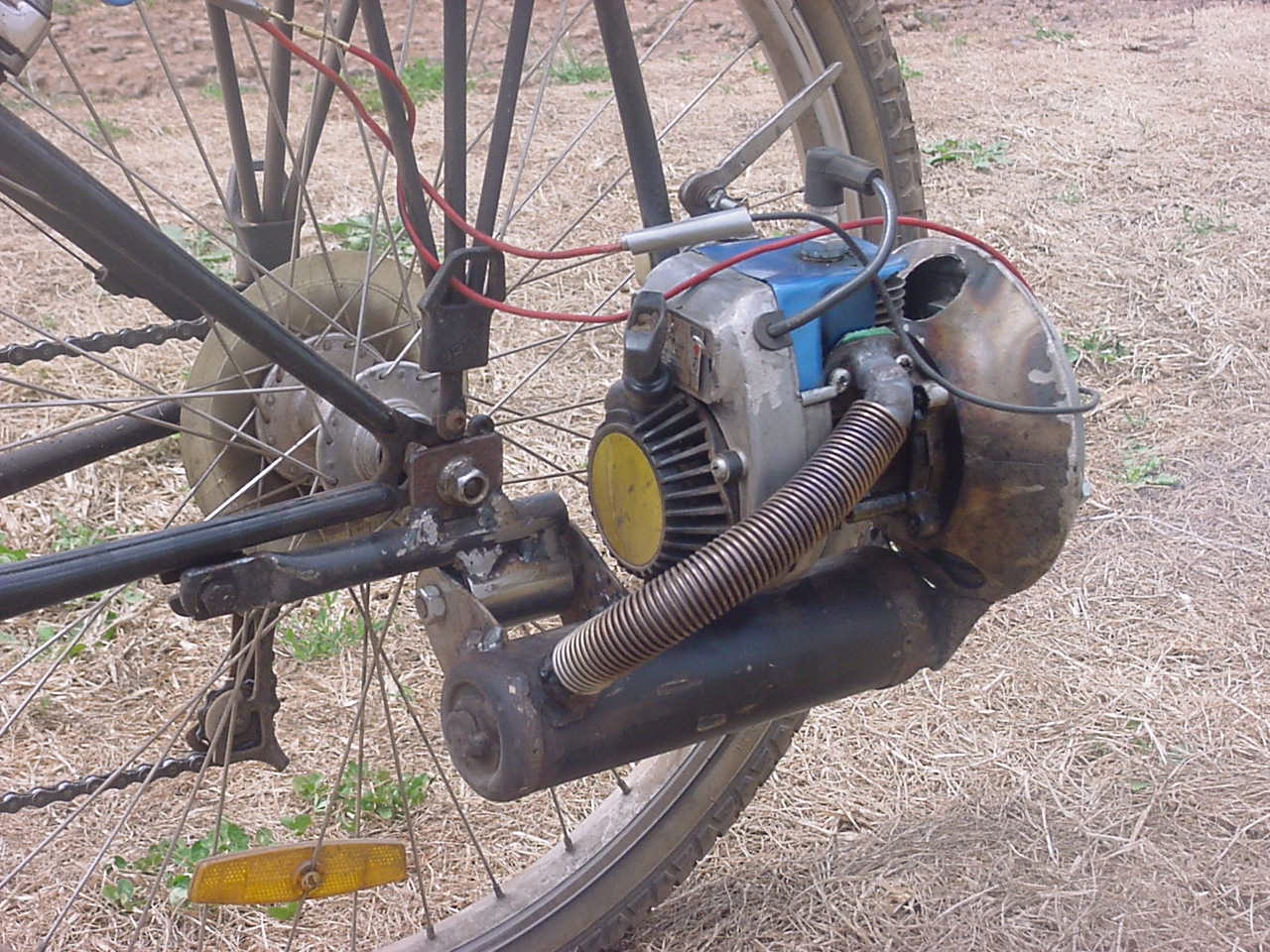

The motor is rubber mounted - doesn't have to be situated here as it has the generator ditrectly coupled to the motor shaft but it's low and well behind for quieter operation.

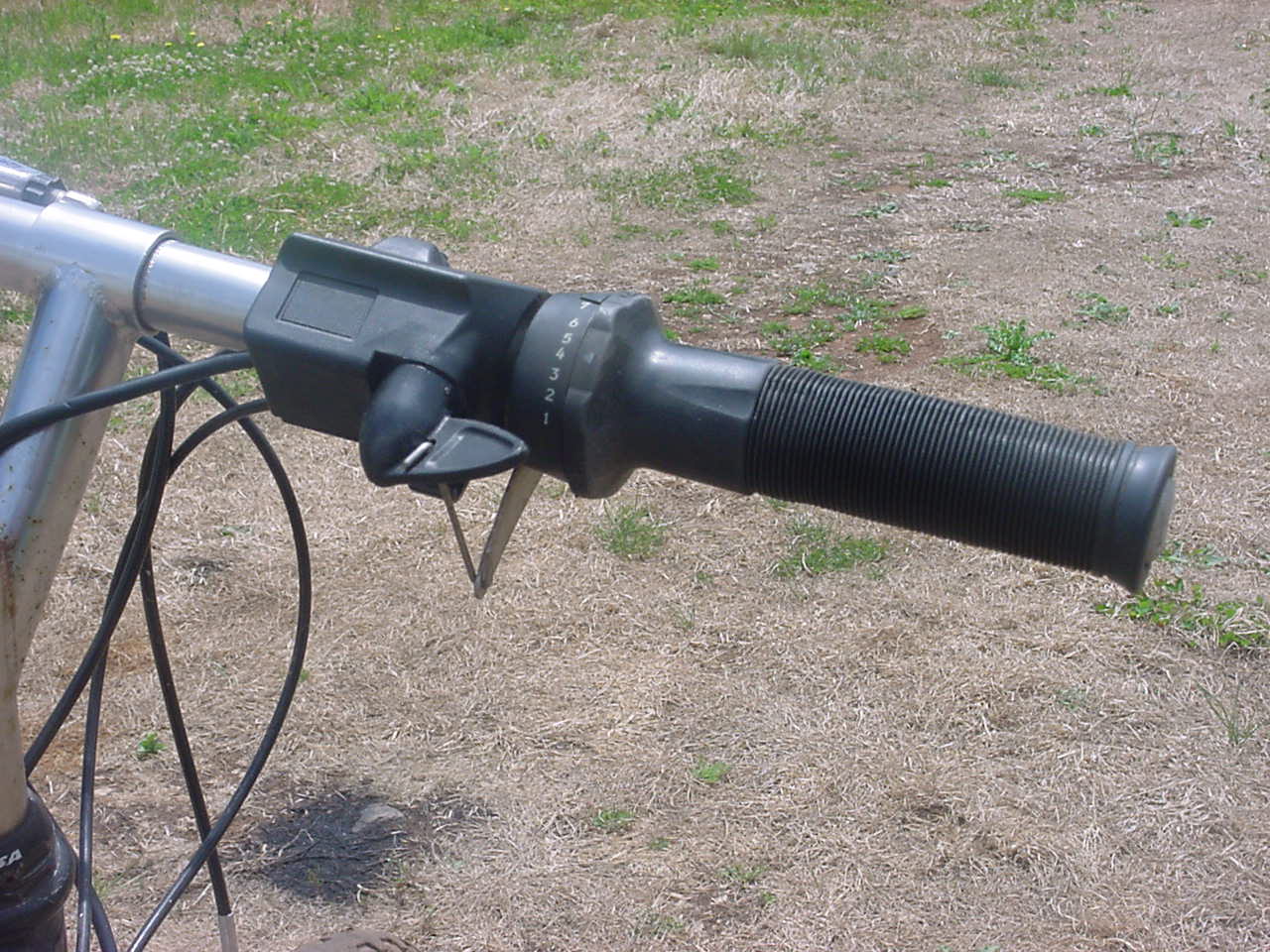

A twist grip throttle pulls the standard US Pr throttle on.

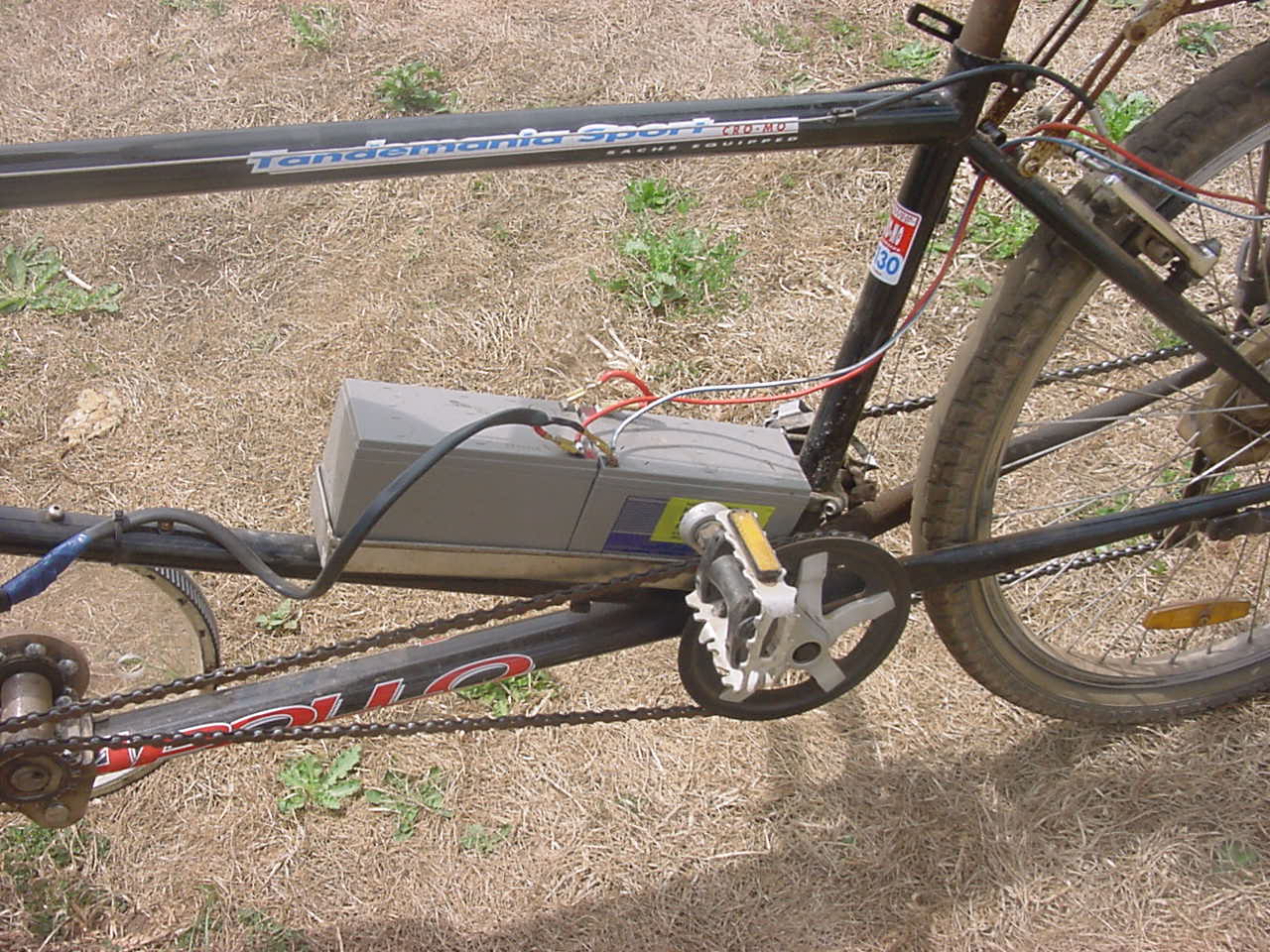

2 x 12v 7AH batteries.


Video's of the bike in action
Video - 320x240, 4 sec, 415k, Riding the bike with motor going.
Video - 160x112, 5sec, 120k, Throttle action
Video - 160x112, 5sec, 120k, Closeup of motor running.

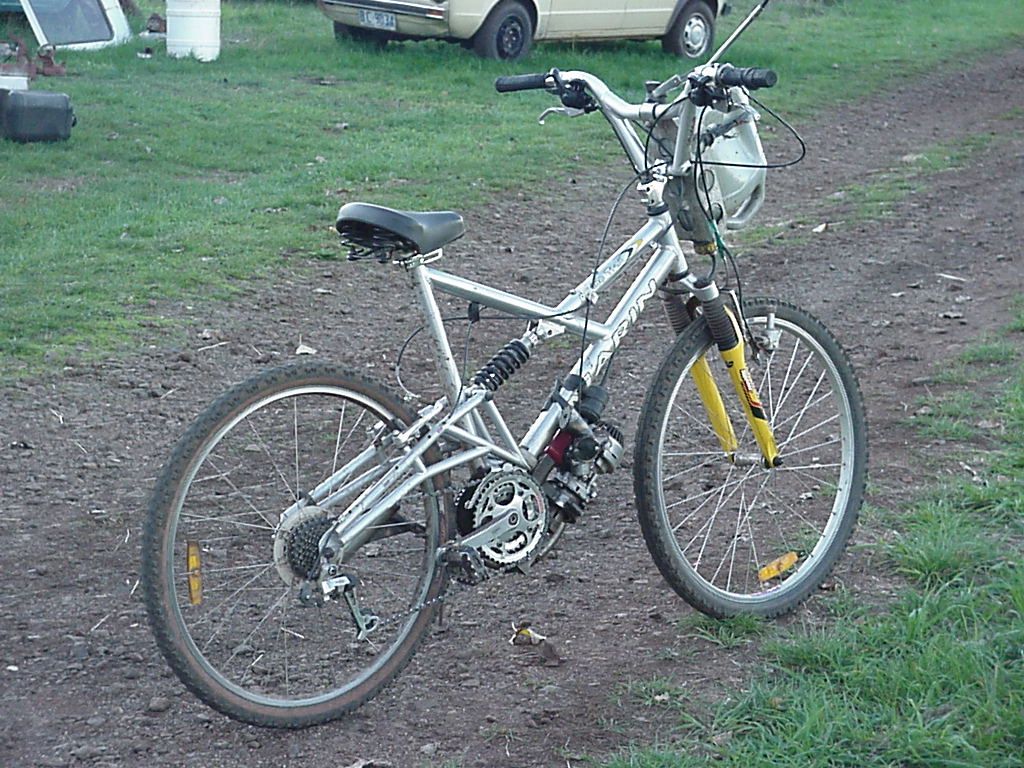

Petrol powered bike

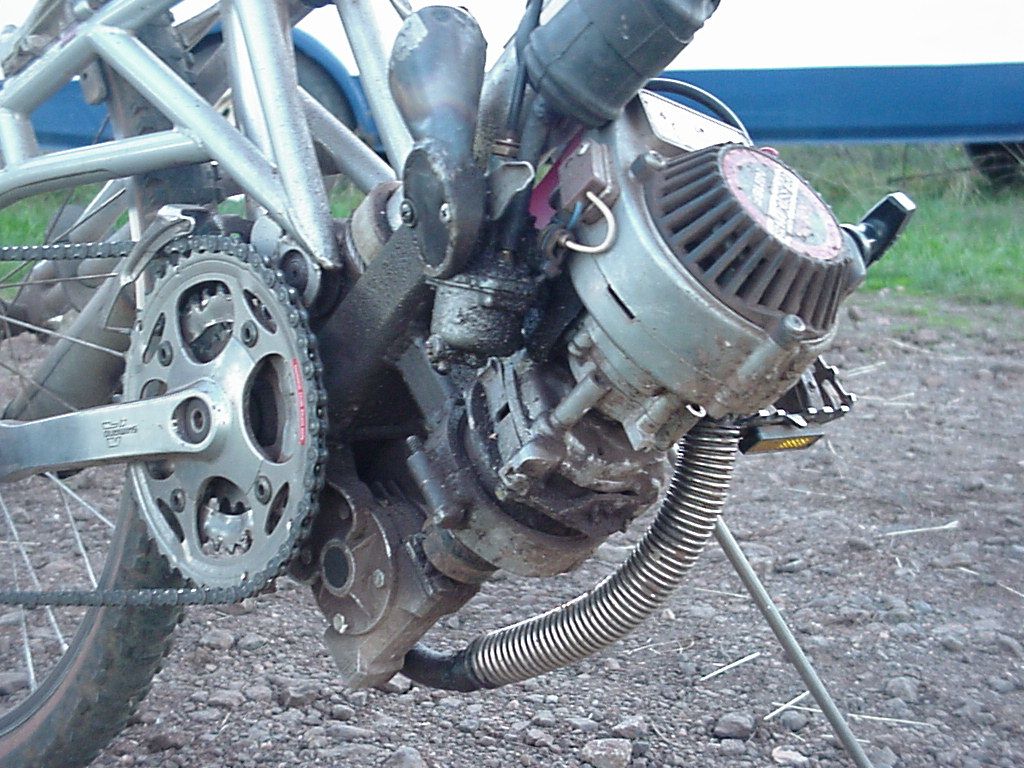

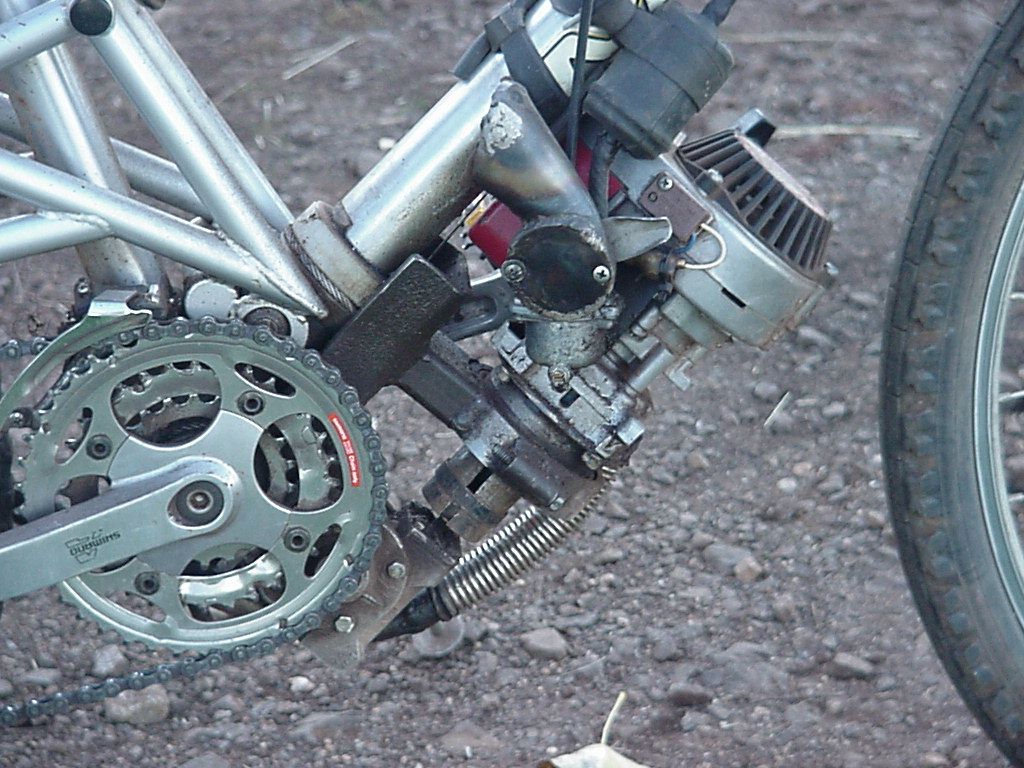

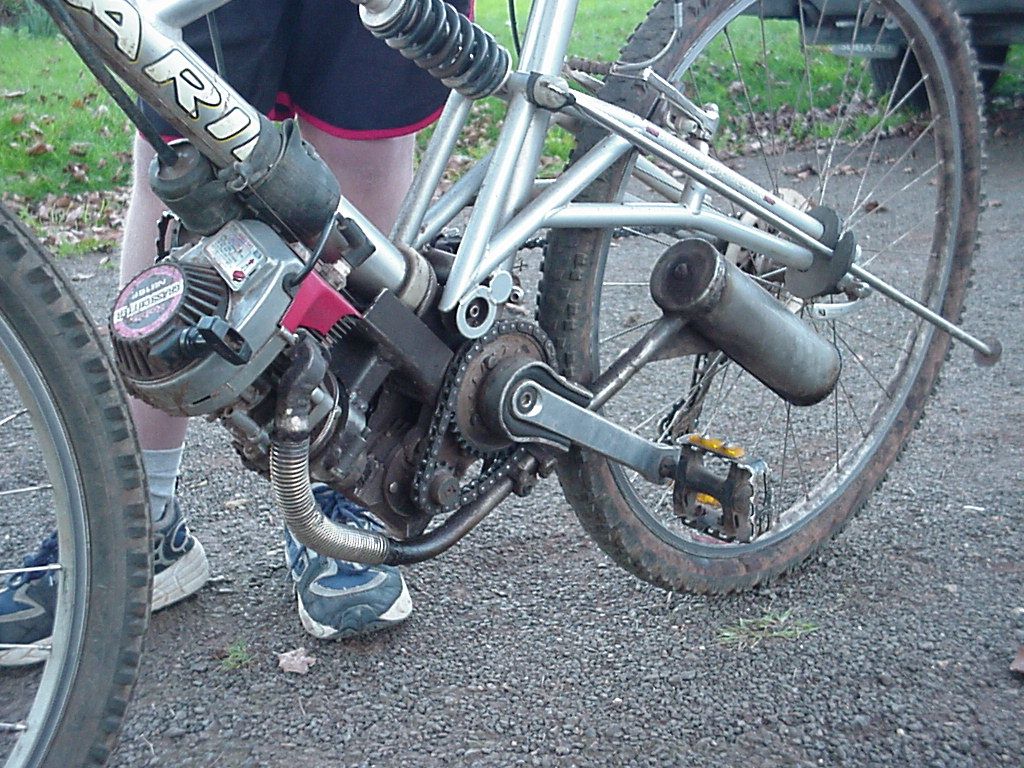

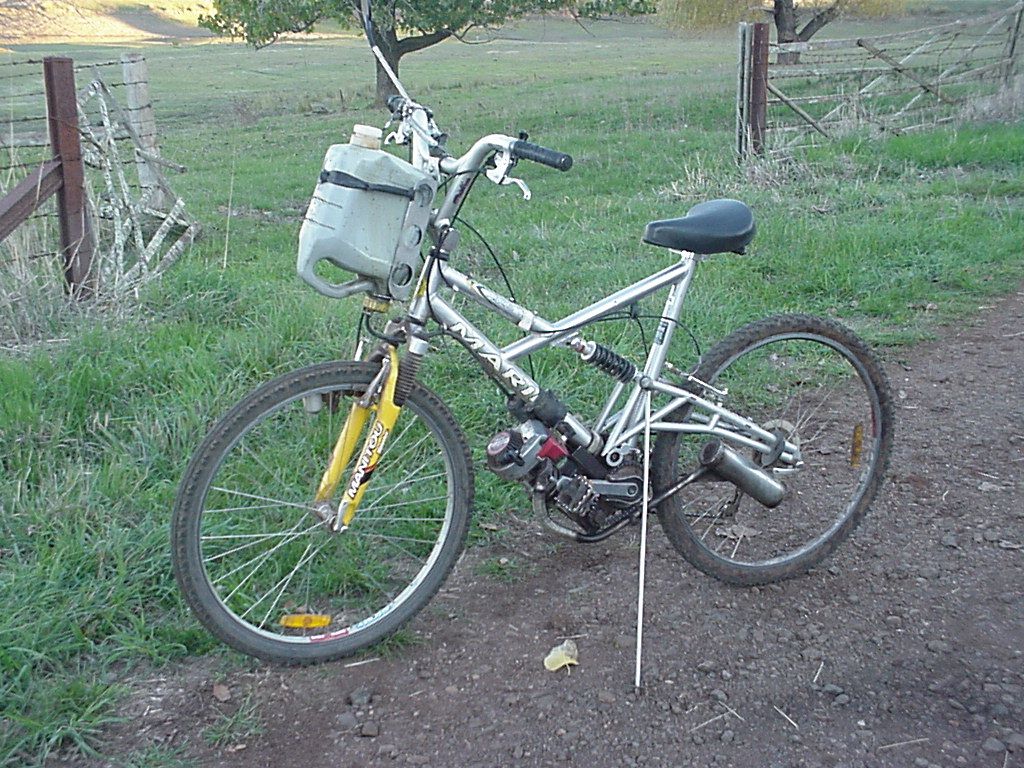

A 100:1 gearbox drives the cranks through a ratchet so the rider can pedal without the motor going. Motor is a small Robin 2 stroke weed trimmer variety. The bike can't be pushed backwards as the gearbox worm drive doesn't allow the pedals to be reversed.

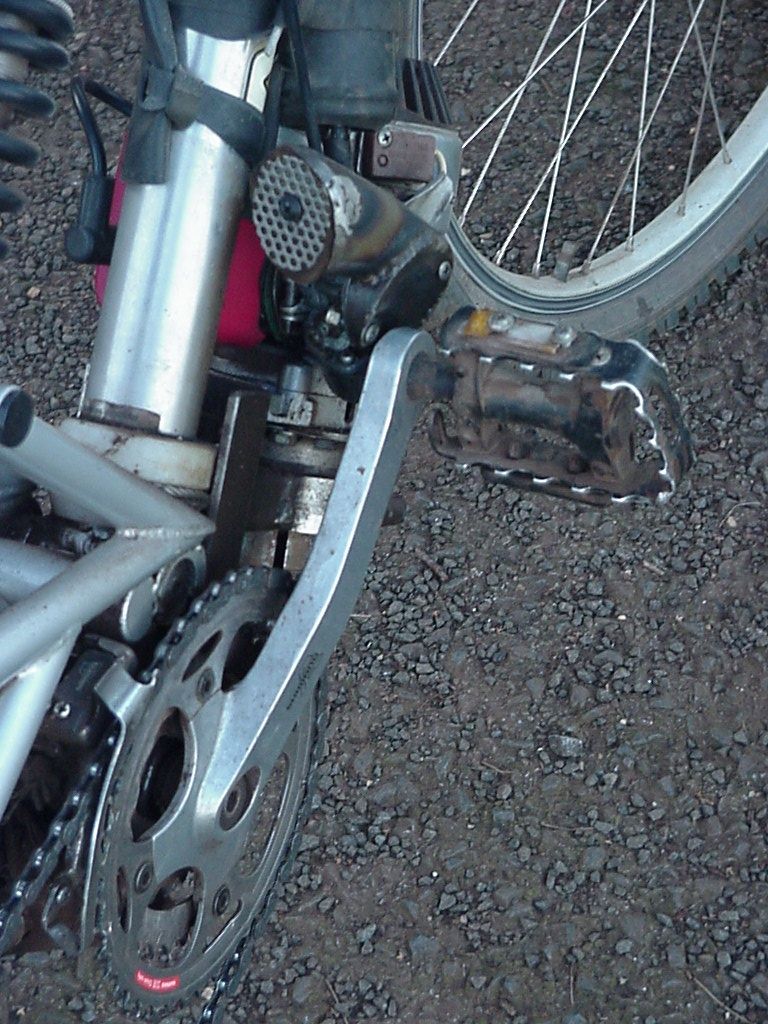

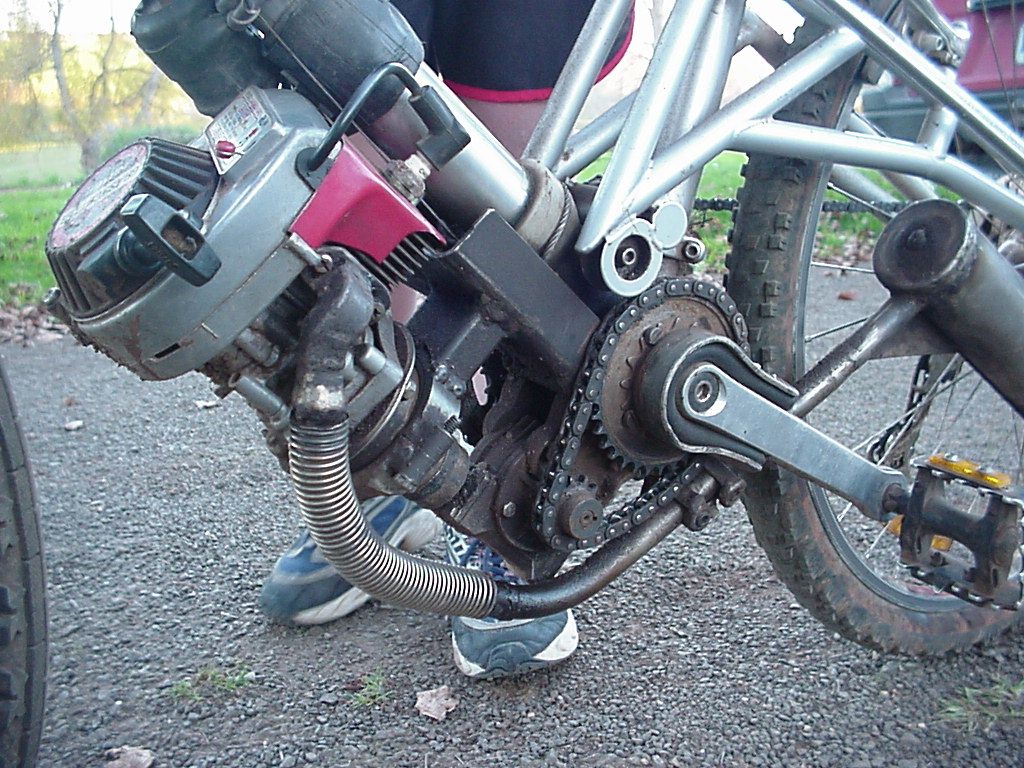

The right pedal comes close to the air inlet/cleaner.

Temporary fuel tank clamped to the handlebars.







Video's of the bike in action
Video - 160x112, 7sec, 160k
Video - running with the back wheel off the ground - 160x112, 5sec, 120k
Video - 320x240, 5sec, 474k
Video - 320x240, 6sec, 603k
Video taking off from the start - 320x240, 5sec, 475k
