Andrew R. Stewart
Andrew R Stewart is a 48-yr. old, NY state born, hobby frame builder
living in Raleigh, NC. He is a bike shop lifer, having started in high
school working at JC Pennys' toy dept. In 1976 he was handed his first
lug and file when hanging out at a competing shop. Since, Andy has
been building an average of a frame or two a year and various
fabrication/repair/tool projects. Always using steel, lugged
construction is the usual, but some fillet work finds it's way in. His
tools reflect his not wanting to spend too much $ on machining or
materials. Andy is still working in the local shop, often riding in.
[med] = scaled down, (640x480 max) 40-50 kBytes
[big] = original photo, (1536x1024 max) files are 100-200 kBytes
|
 |

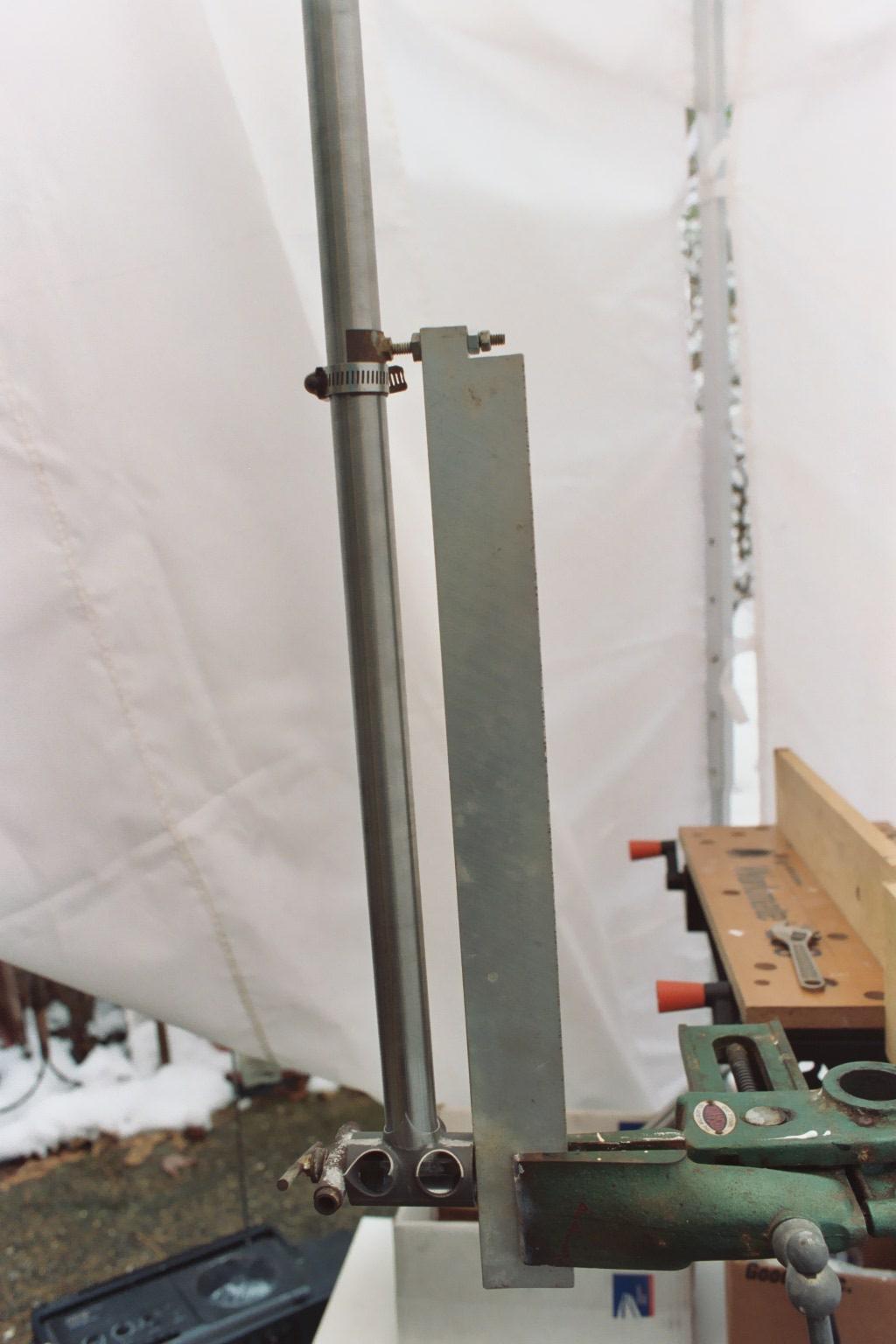

BB/ST- 3/8" alu bar w/ 2 holes, clamp and standoff. I do this joint 1st in
brass, align then do DT and CS w/ silver. Notice cool vice.
[med]
[big]
|
|
 |

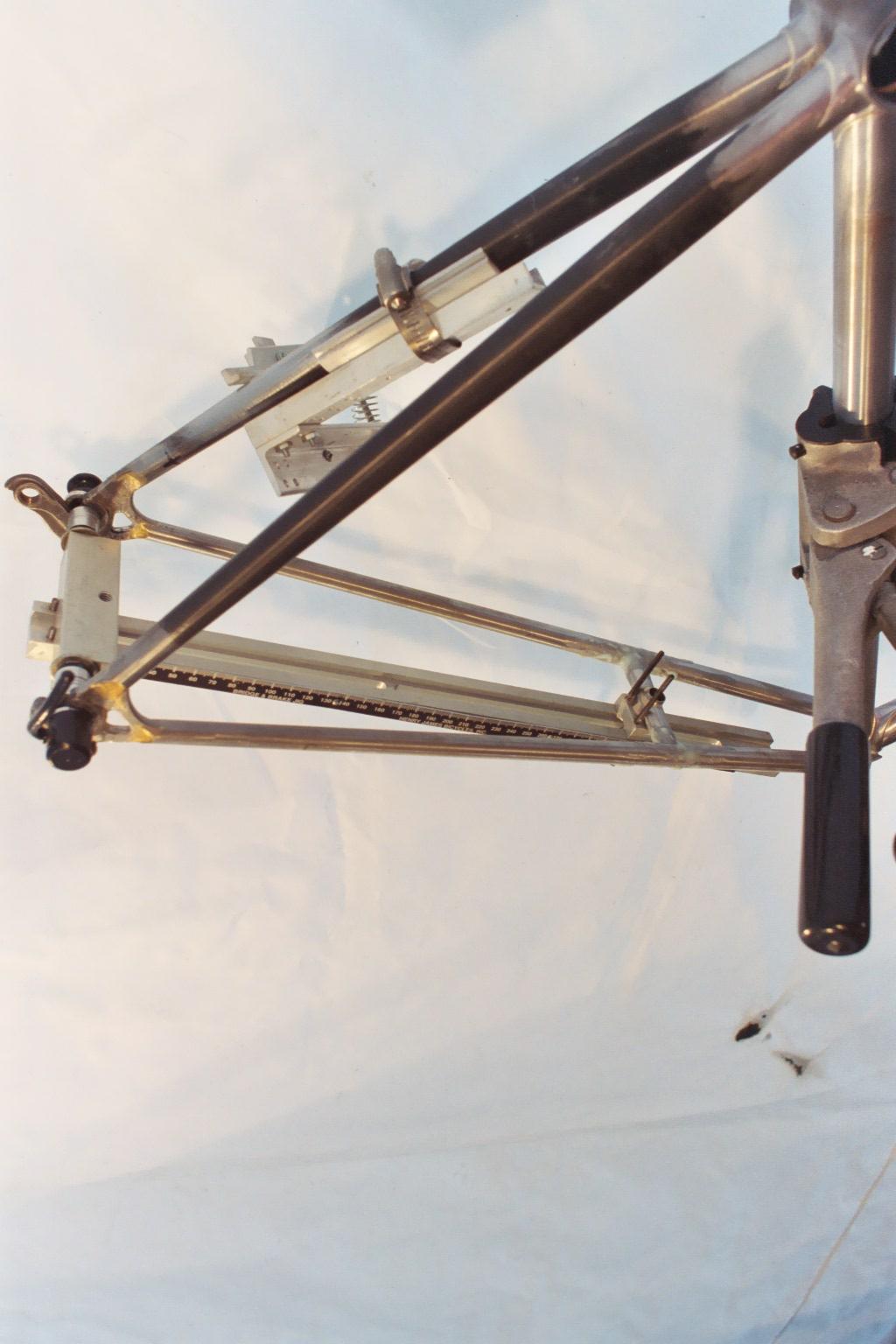

DO/CS- Plate, rod and tube brazed together. Holds DO and stays/blades
in proper arraignment. Tool is not precision but real close.
[med]
[big]
|
|
 |

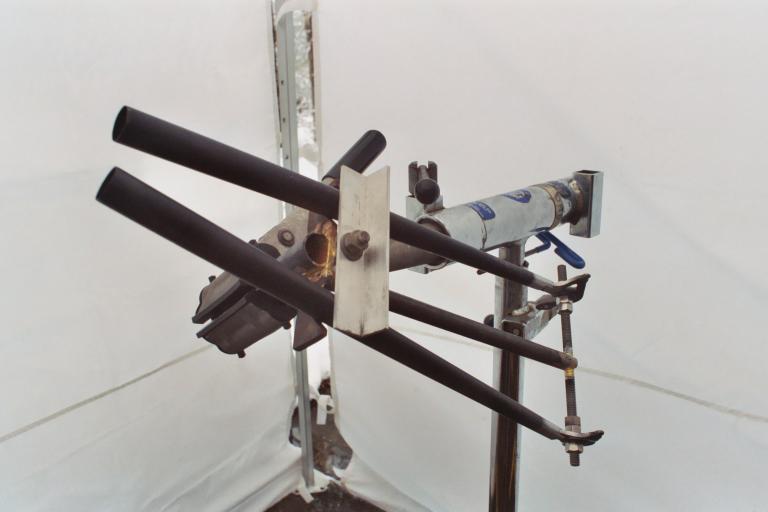

Full Frame- Hank James jig. This is a 45cm, 650c whls, road frame. SS
SS are added after alignment. Long HT excess allows for
easier alignment.
[med]
[big]
|
|
 |

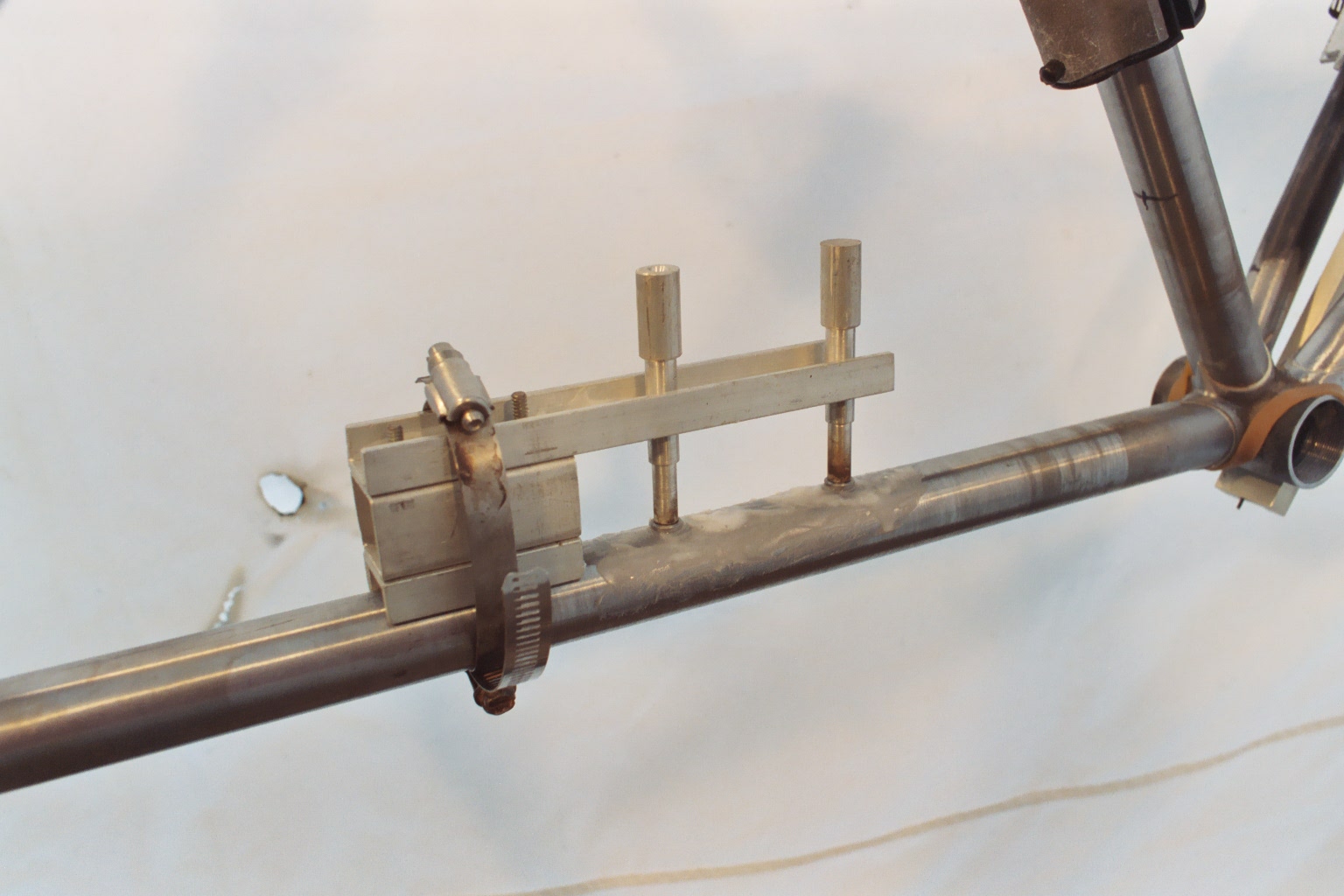

H20- Alu extrusions and turned pilots. Pilots have a section inside H2O
boss.
[med]
[big]
|
|
 |

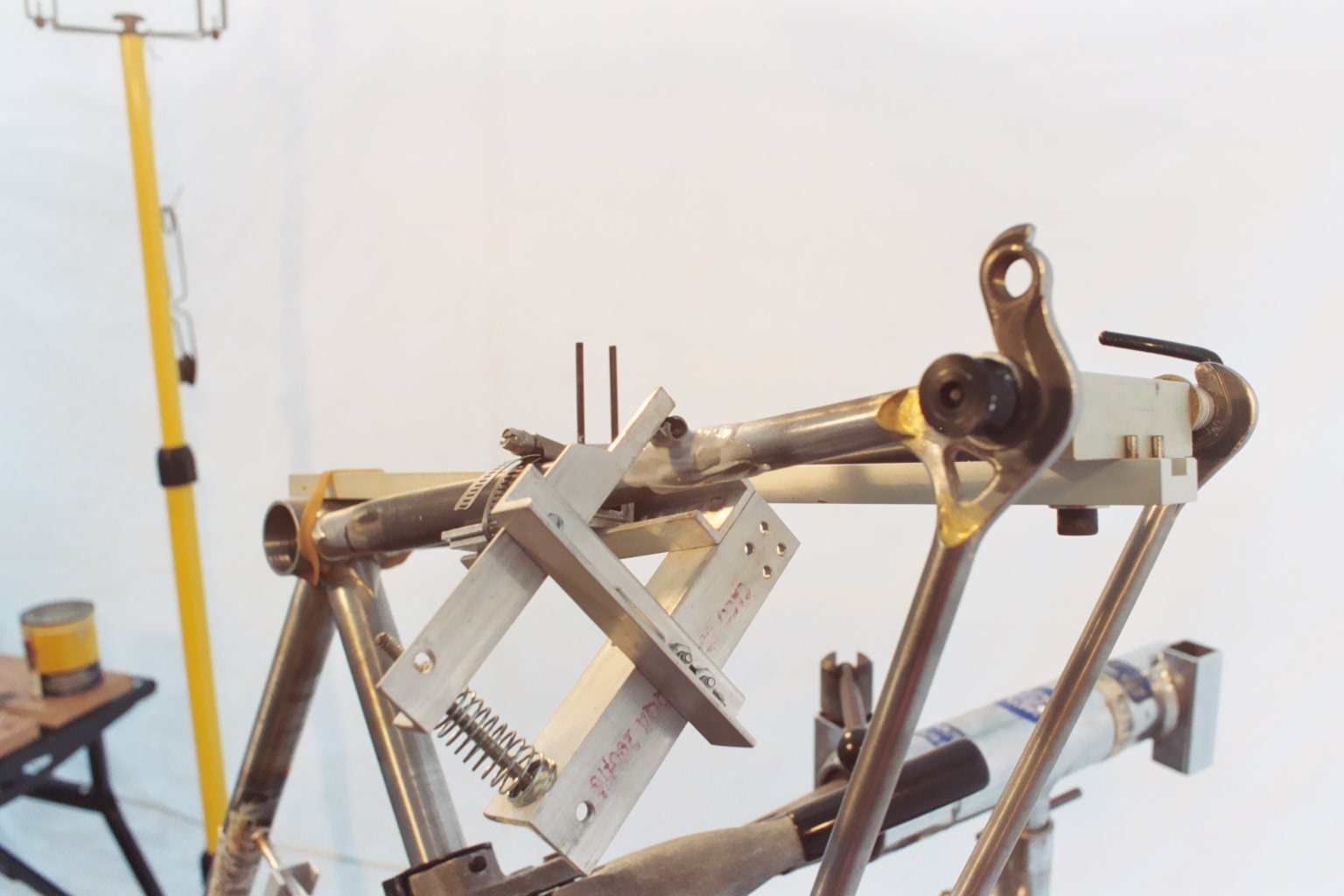

CS Stop- Alu extrusion, spring and rod. Multi holes, slots and mirror
contouring allow lots of clamp configurations.
[med]
[big]
|
|
 |

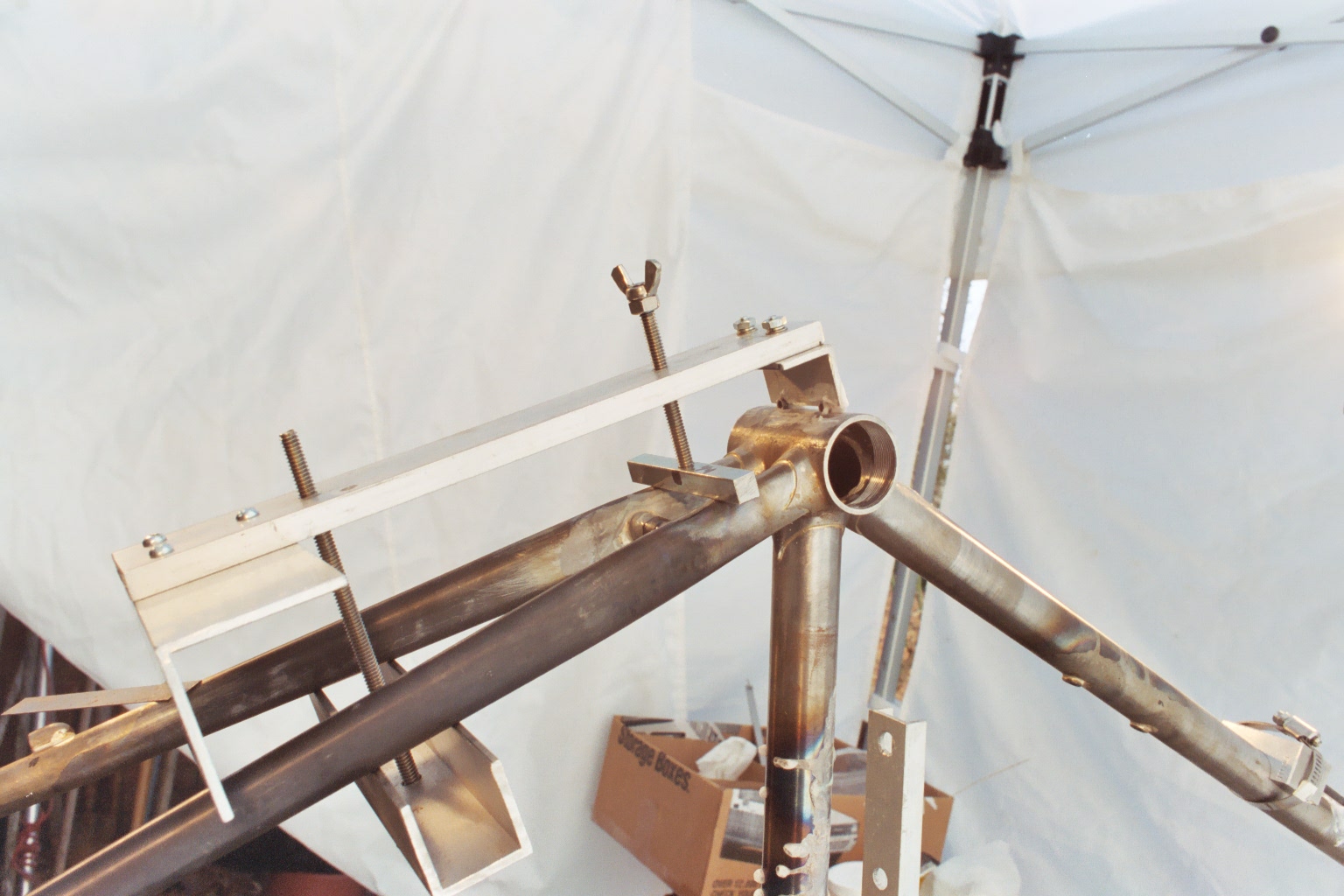

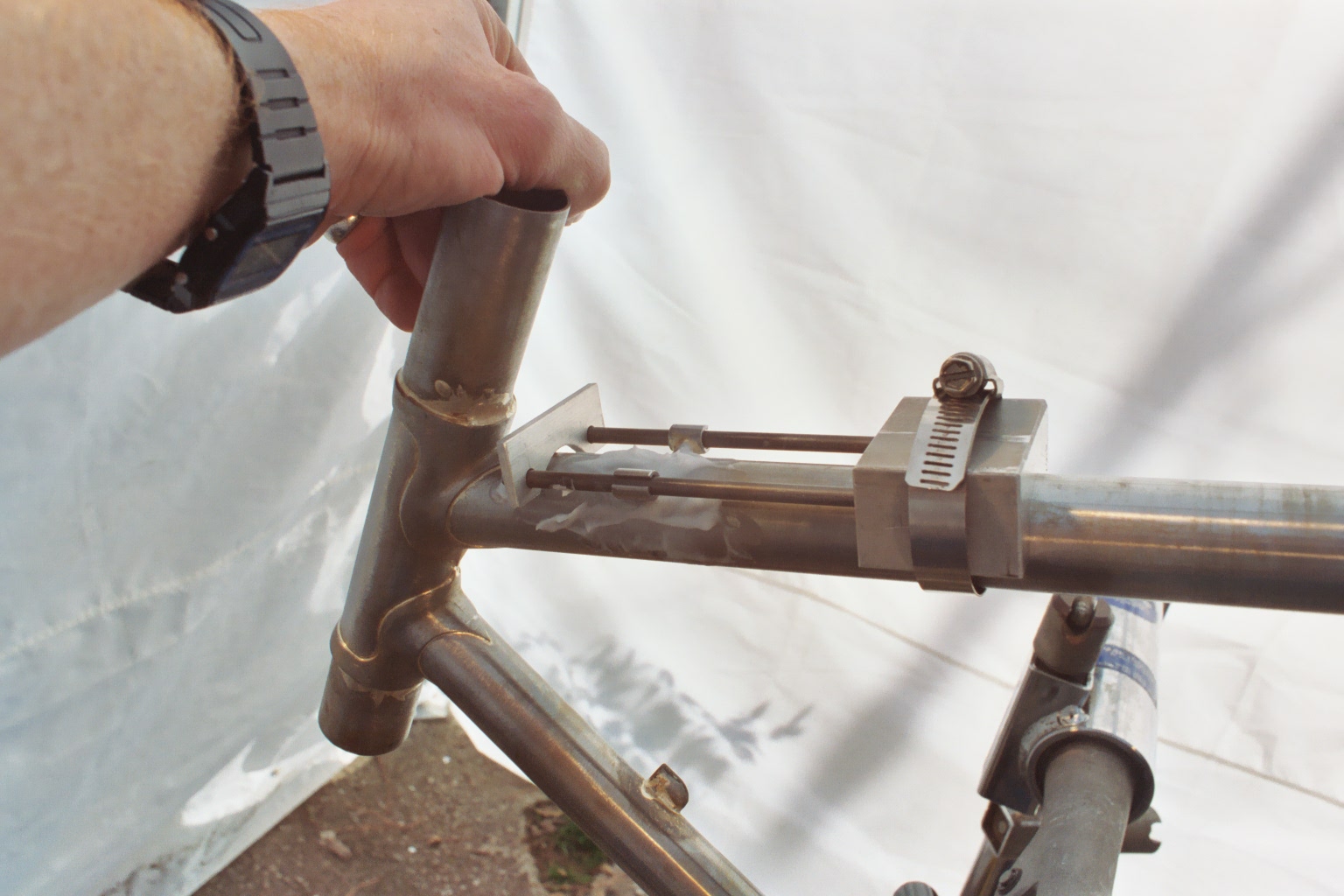

TT Stops- Same as CS clamp but set up differently.
[med]
[big]
|
|
 |

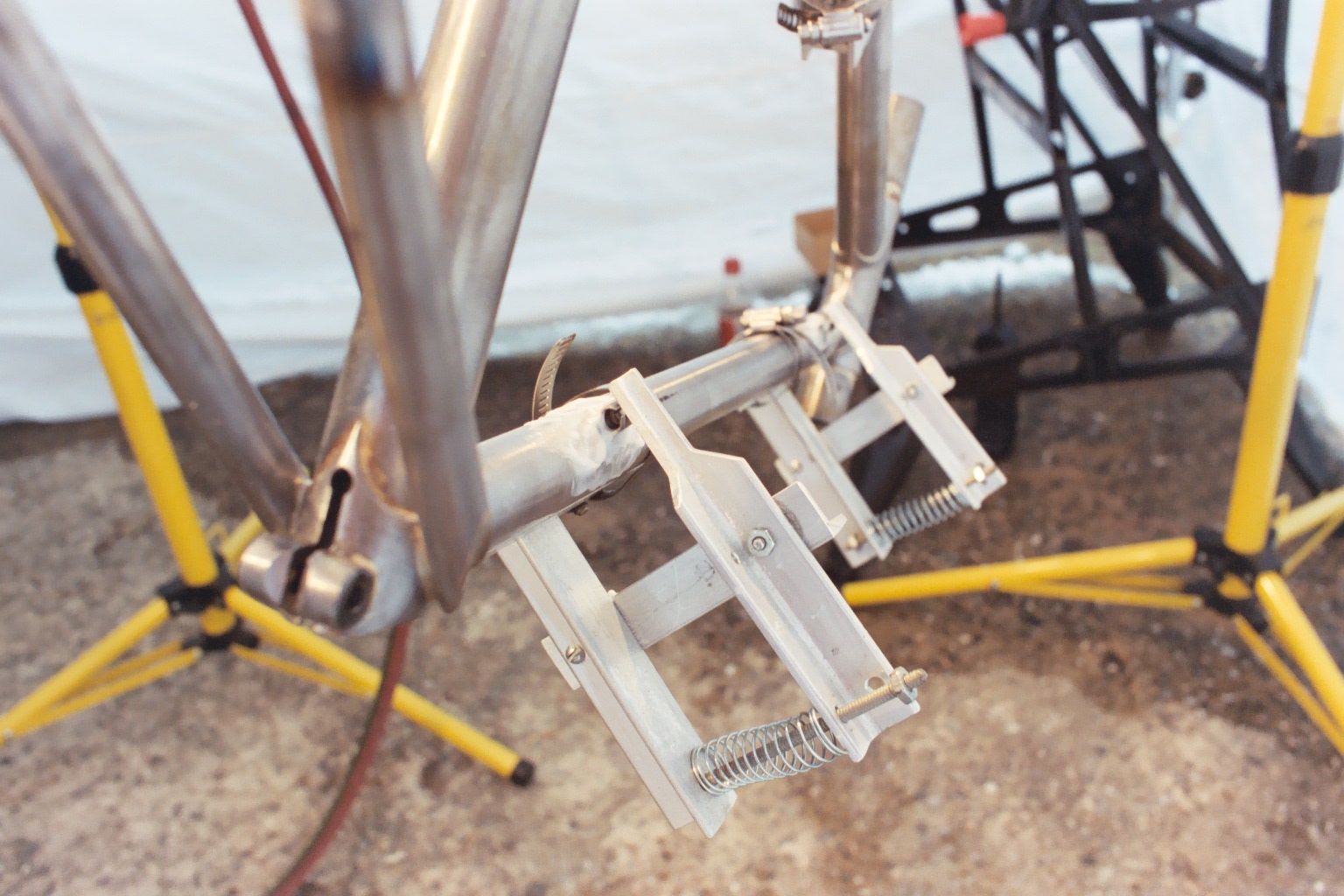

BB Guides- Alu bar and extrusion, steel bar and rod. Wing nutted rod
allows fine pressure control adding prep/set up. Note my
Didymium glasses.
[med]
[big]
|
|
 |
DT Stops- Bicycle Research frame block, alu plate and steel rod. The
stops are a canti boss cut and slotted, brazed on a short rod as a standoff.
[med]
[big]
|
|
 |
HT Logo- Hank James braze on bit holder. The "S" is my HT badge.
Made of copper wire.
