Michael Painter

This shows Michael's new Greenspeed GTR trike. It's a little different to many (as if recumbents aren't unique enough as they are) as it doesn't have any external gearing but still manages to be 28 speed (gear inch 13" - 117") - it originally was intended to be tooth rubber belt drive as well but that didn't eventuate.

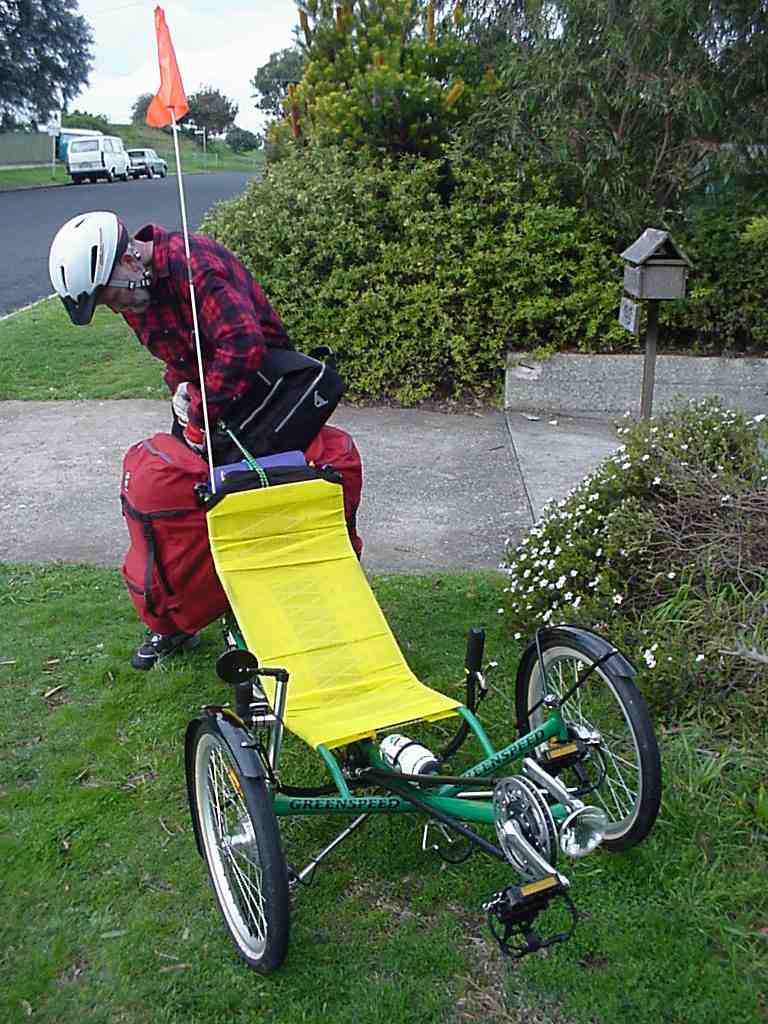

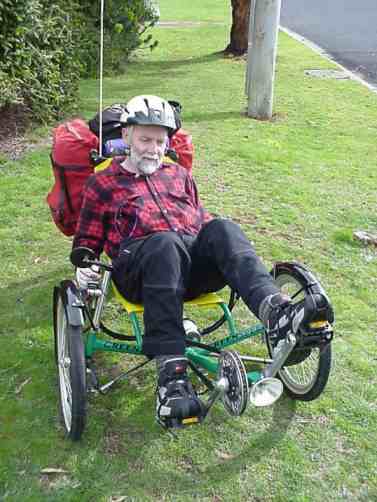

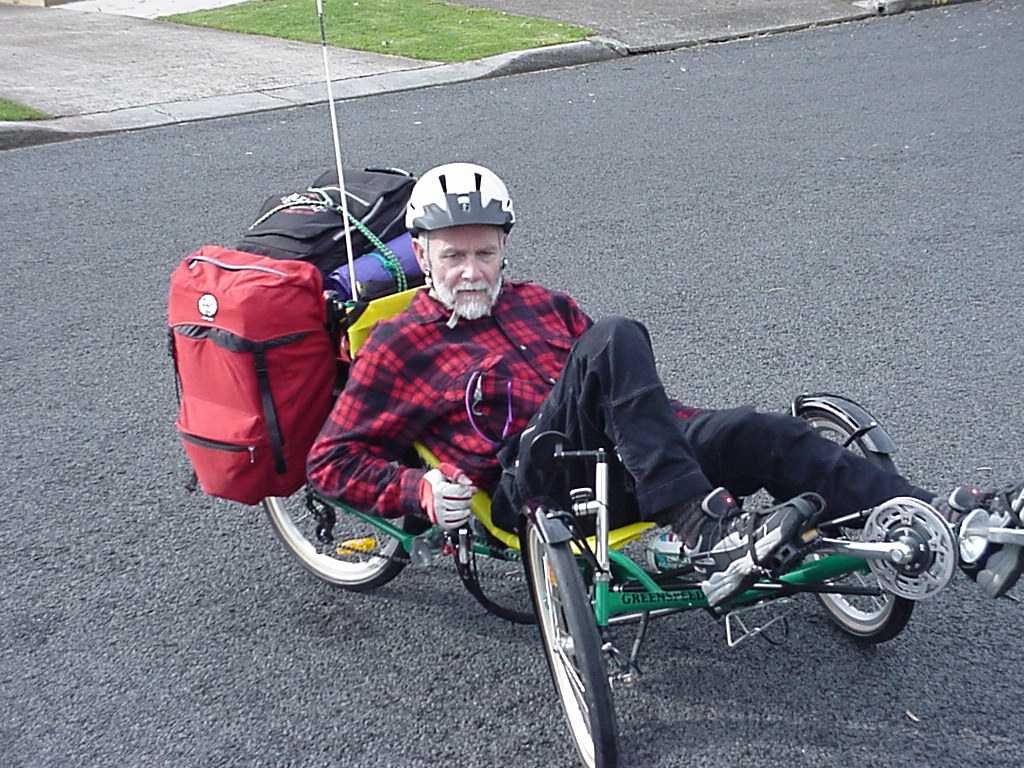

Mike on the trike

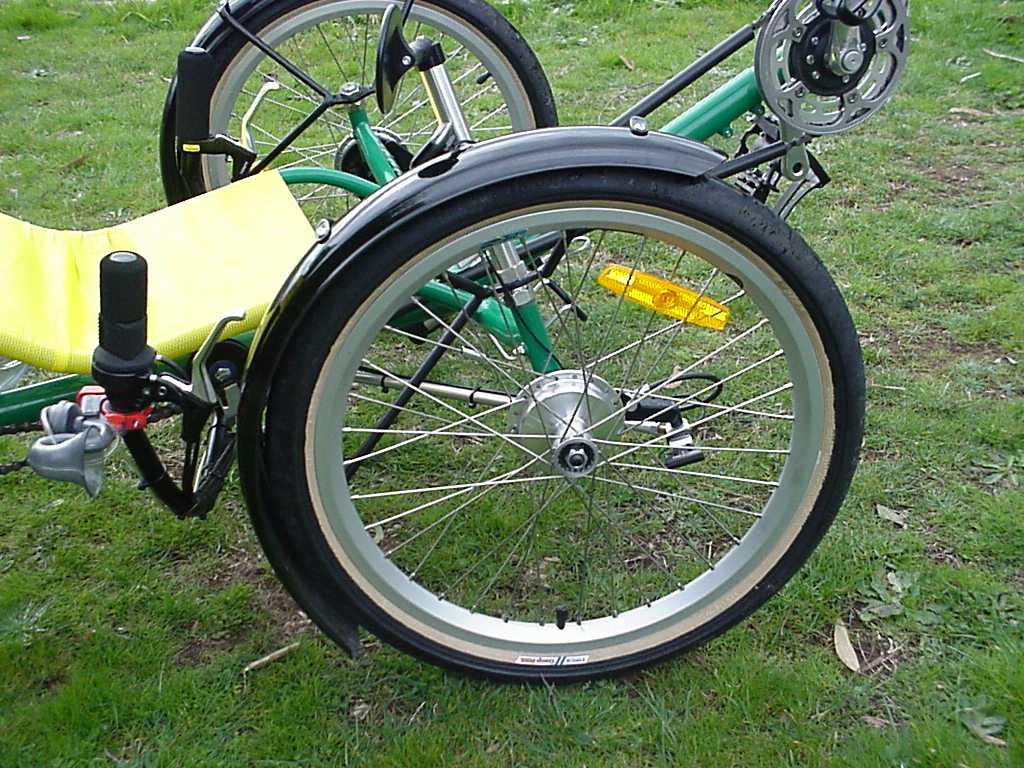

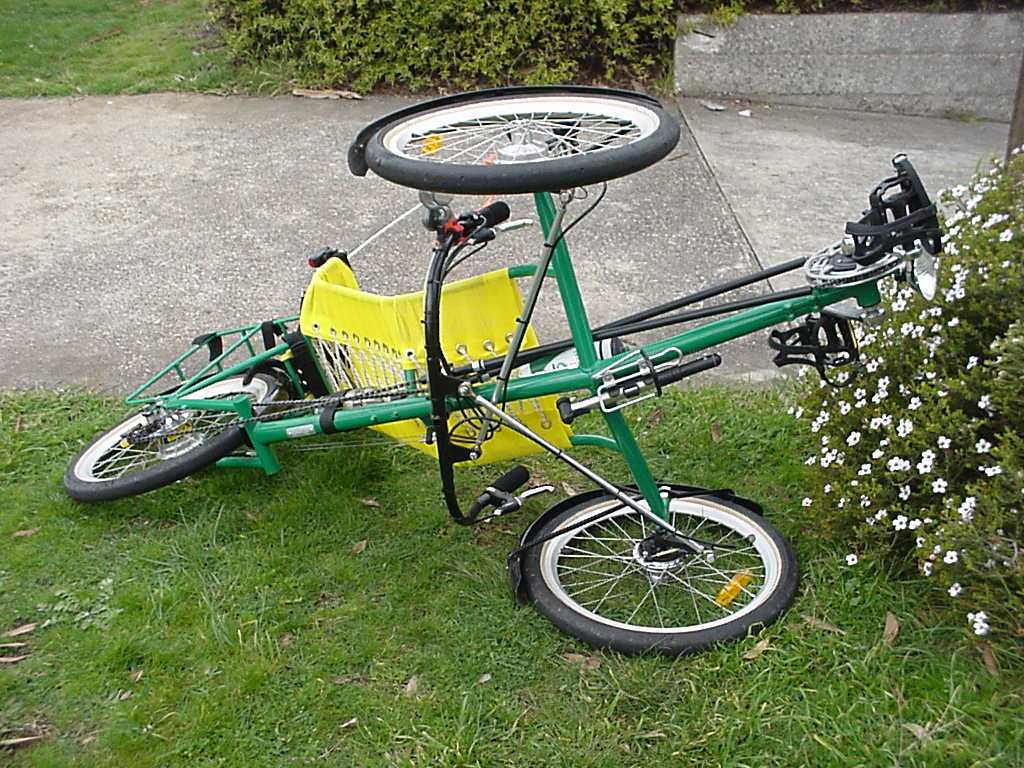

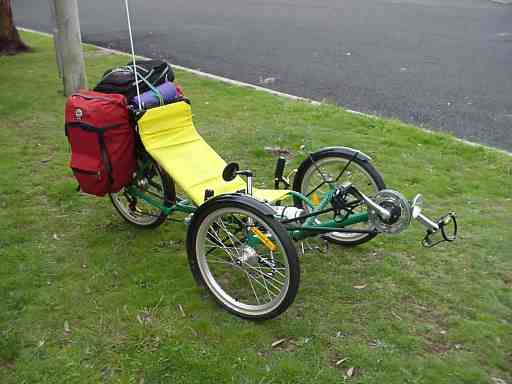

Side of trike

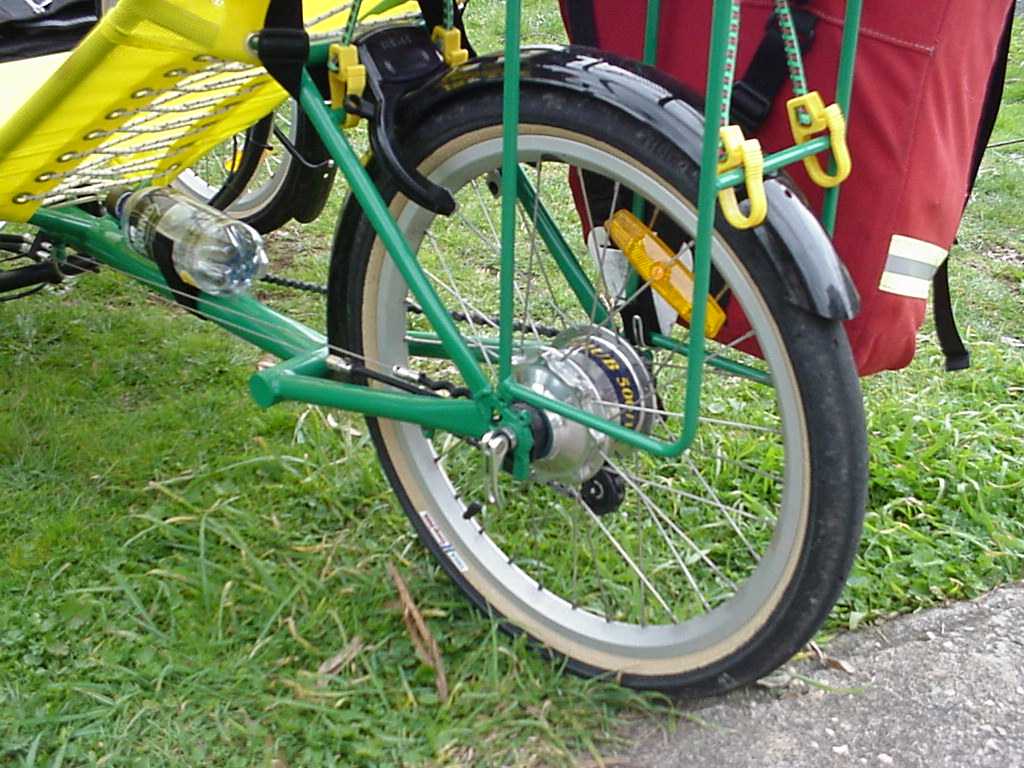

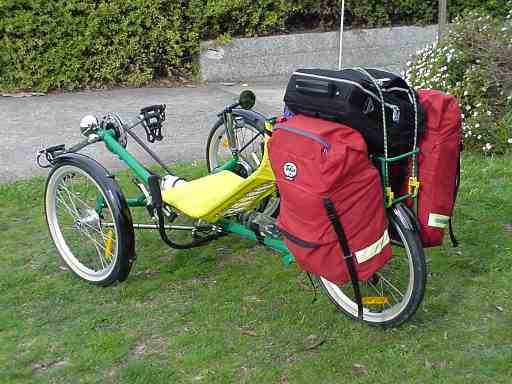

Back of trike

Click on a small pic to view the larger size @ 1024 x 768.

125k

140k

117k

122k

1129k

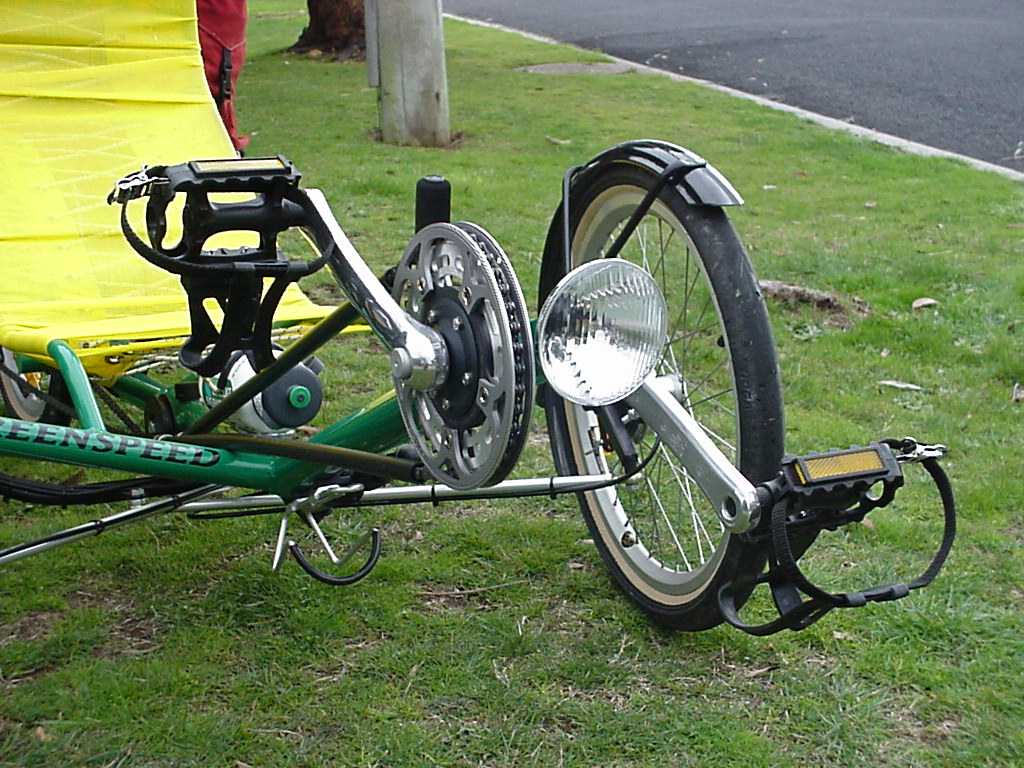

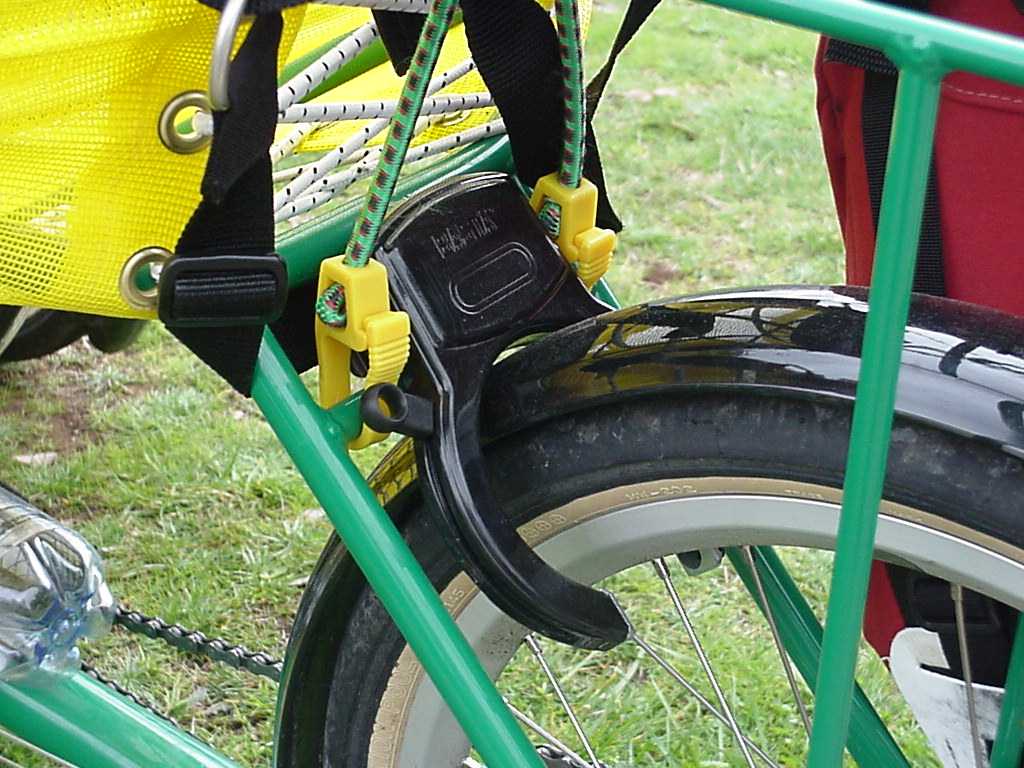

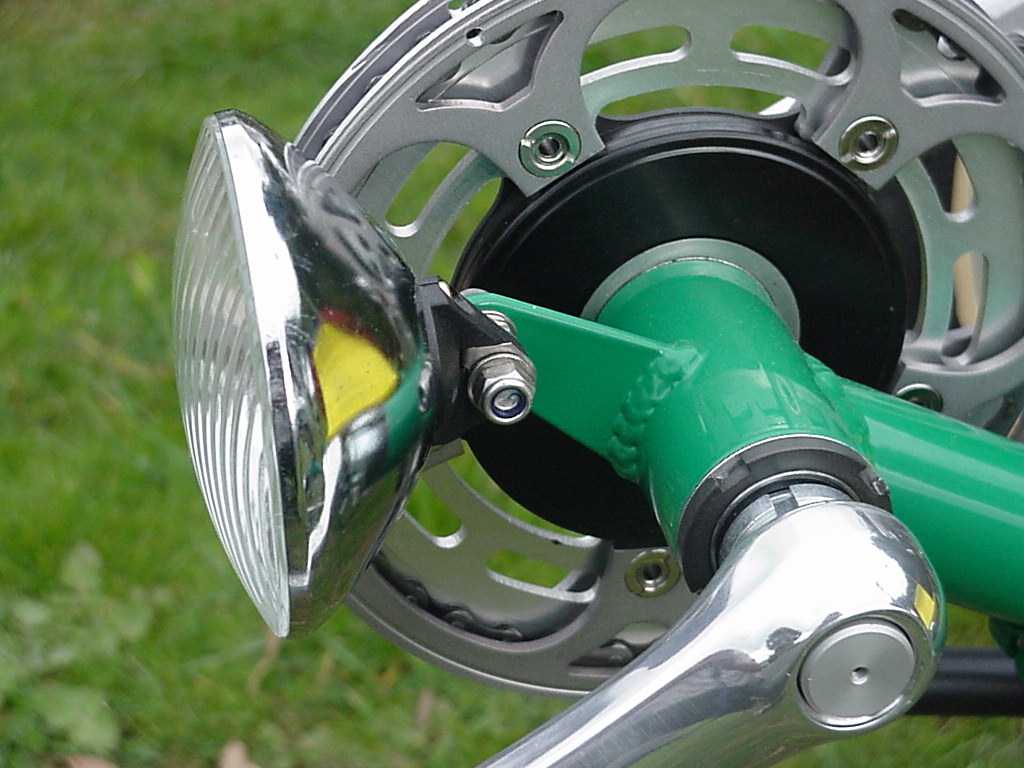

  2 speed internal Schlumpf front BB. The button in the centre toggles in and out to change gears.   The black hoop is a bike lock. Turn a key and a pin is slid between the spokes to imobilise the machine.

131k

133k

111k

64k

101k

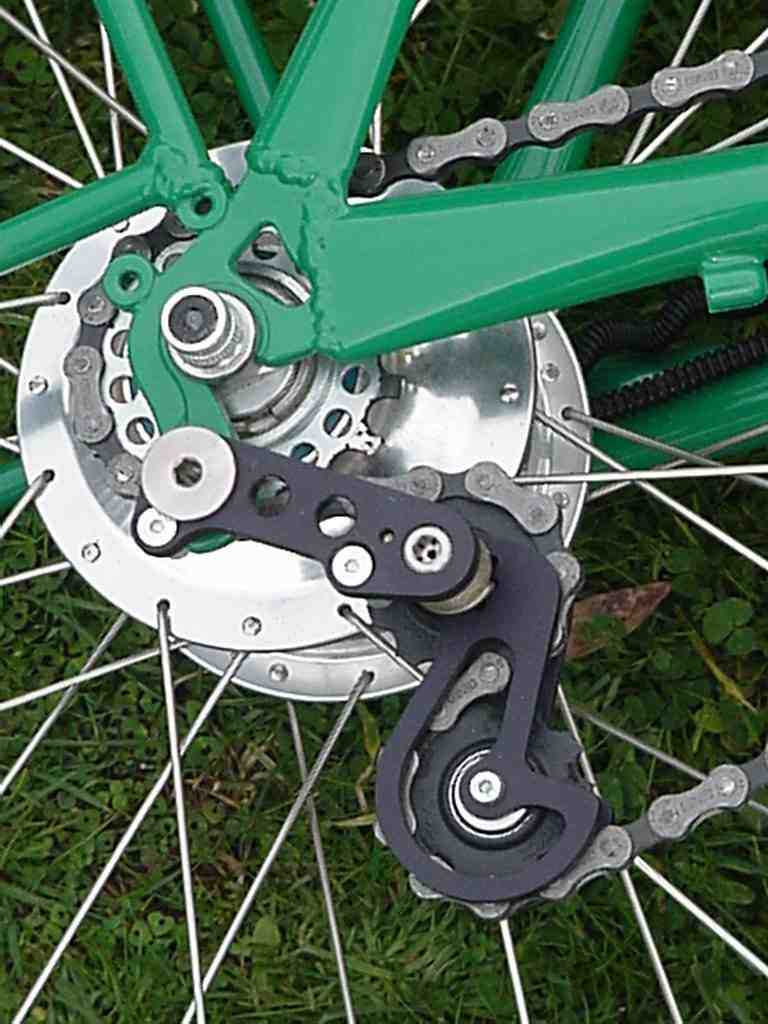

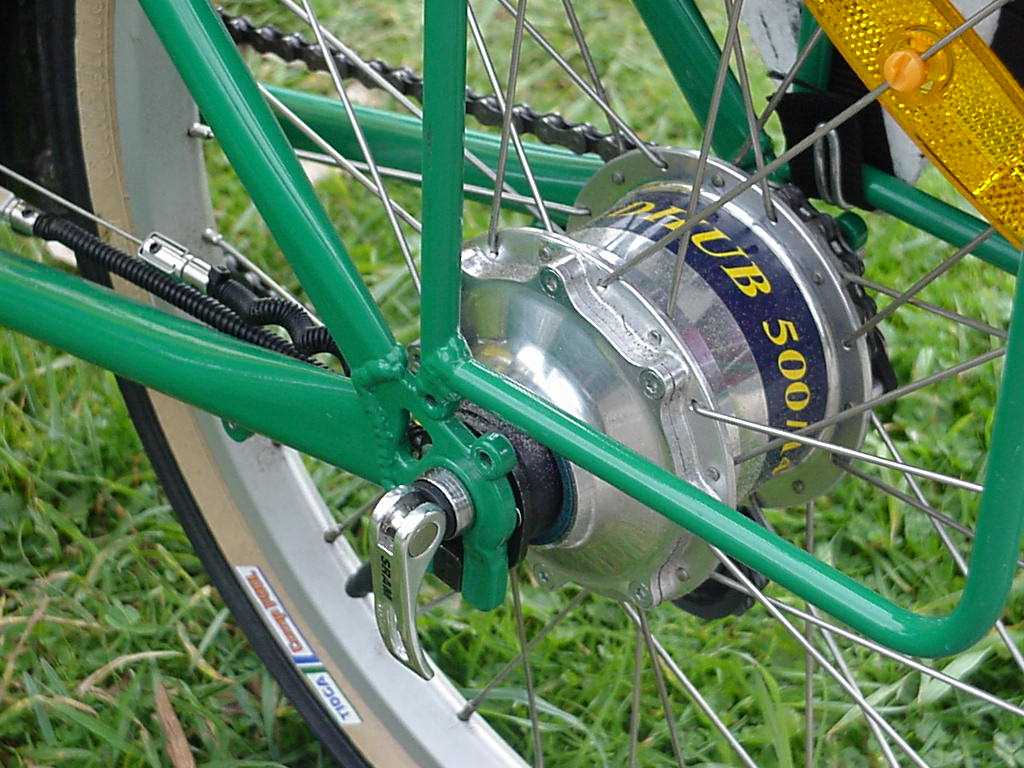

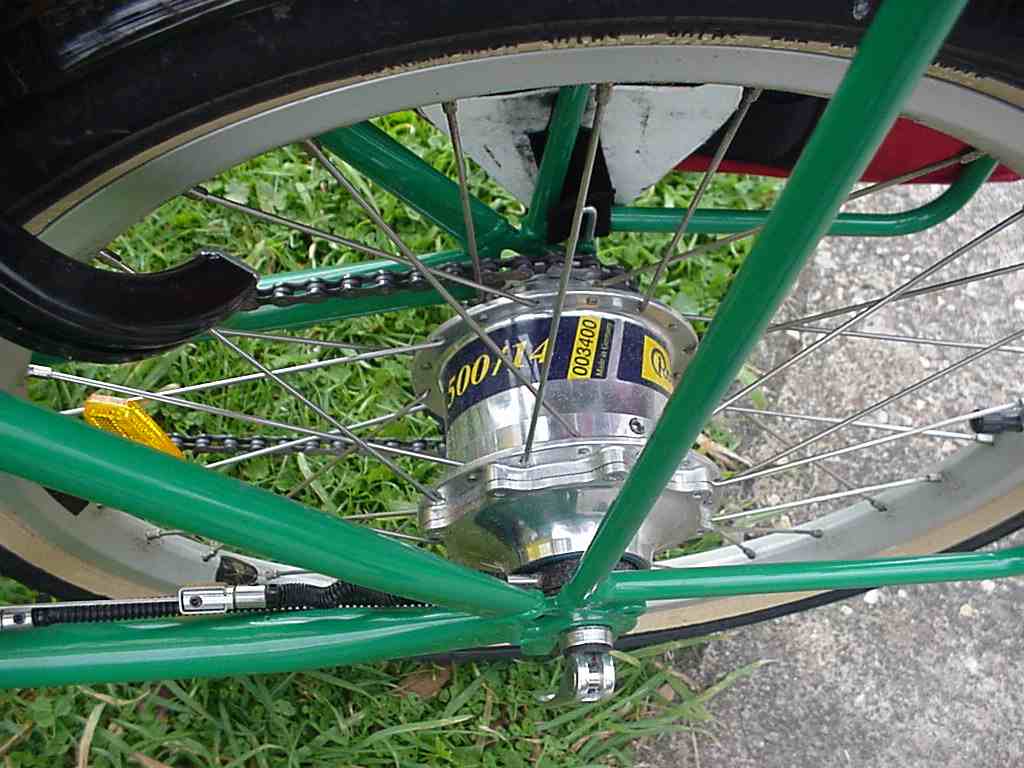

Rolhoff 14 speed internal rear hub (OEM version) Note quick release. 2 cables come from the hub.

111k

112k

82k

94k

67k

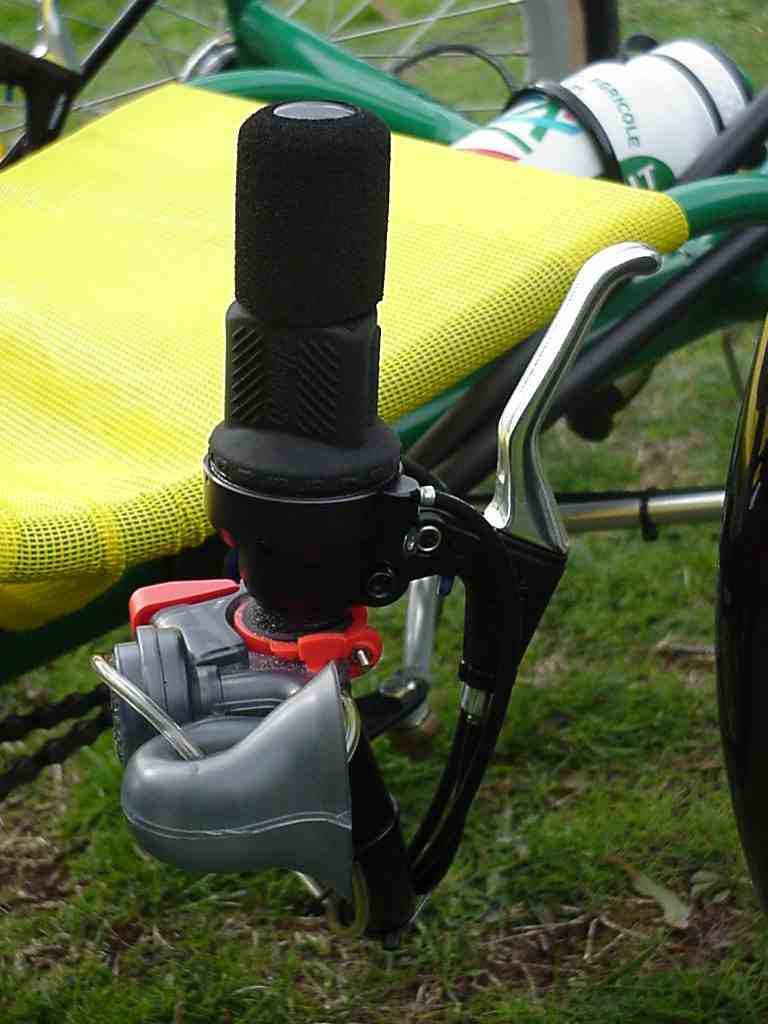

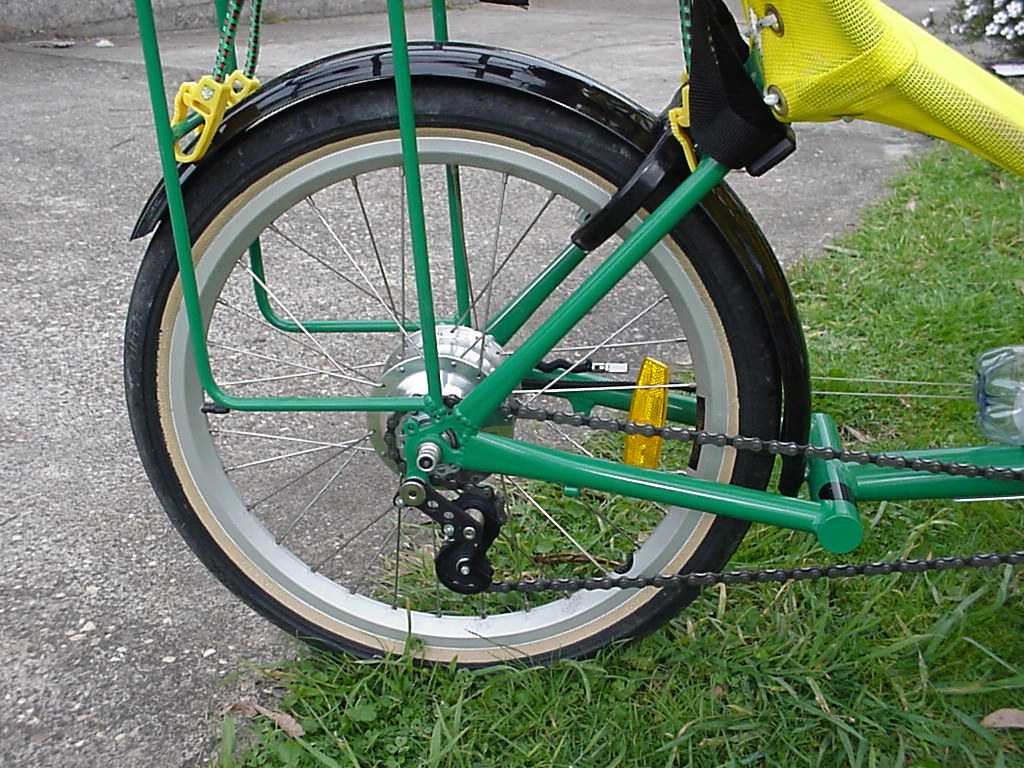

  The OEM version of the Schlumpf doesn't have a torque arm but engages in the dropout.   Bottom half of the handle is the gear shifter. There's only 1 gear lever aneeded - it turns directly from gear 1 to 14 in one sweep.

102k

70k

611k

53k

73k
